Baum AutoBaum B12A Semi-Automatic Paper Folder (Discontinued)
- SKU: BAUMB12A
- Max Paper Weight: 75 gsm
- Max Paper Size: 12.5" x 18"
- Adjustment: Automatic
- Feed Type: Friction
- Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Engineer
- GTIN/UPC: 9358476099266
- Sale price
- Limited availability.
- Sale price
- $4,389.36
- Unit price
- per
Basic Specs of the Baum AutoBaum B12A Paper Folder
- Feeder Capacity: Up to 500 sheets
- Paper Size: 3.5" x 5" to 12.25" x 18"
- Paper Weight: Up to 75gsm
- Production Speed: 20,100 sheets/hr (11" long)
- Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Engineer
Features of the Baum AutoBaum B12A Paper Folder
- Semiautomatic
- Takes up to 500 sheets
- LED display
- 6 languages

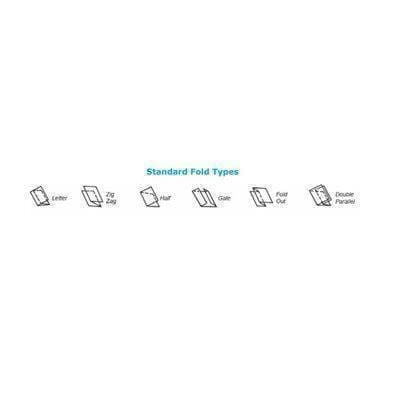

Fold Types for the Baum AutoBaum B12A Paper Folder
There are six different fold types available for the B12A:
(1) Letter fold (Tri-fold, C-fold),
(2) Half-fold (Single fold),
(3) Z-fold (Accordion, Zig Zag),
(4) Double-Parallel,
(5) Gate (Open Gate, Brochure), and
(6) Engineering (Short Z, Fold Out, Half Accordion).
(1)
(2)
(3)
(4)
(5)
(6)
Video of the Baum AutoBaum B12A Paper Folder
Description of the Baum AutoBaum B12A Paper Folder
The Baum AutoBaum B12A is the only semi-automatic folder of the of the B12 series. The B12A packs amazing speed and capacity into a convenient desktop folding machine. With it's large LED display screen, you can program up to 25 custom folds, or use one of the pre existing settings in six different languages (English, Spanish, French, German, Italian, and Dutch). The B12A is semi-automatic and maintains most of the easy-to-use features and efficiency at a lower cost than the B12X. The B12A has a feeding capacity of 500 sheets and an amazing speed of 20,100 11" sheets per hour. The B12A has 18 pre-programmed settings, and users can save up to 25 custom folds in the LED display control pad. The B12A is almost entirely automated, and users only need to manually set the delivery wheels before a folding job.
Compare the Baum AutoBaum B12A Paper Folder with Other Models
| AutoBaum B12X | AutoBaum B12A | AutoBaum B12M | |
|---|---|---|---|
| Production Speed (sheets/hour) | 21,500 11" long | 20,100 11" long | 15,500 11" long |
| Feeder Capacity (20 # or 75 gsm) | Up to 500 sheets | Up to 500 sheets | Up to 500 sheets |
| Pre-Set/Premarked | 11", 14", 17", A5, A4, A3, B6, B5, B4 | 11", 14", 17", A5, A4, A3, B6, B5, B4 | 11", 14", 17" |
| Pre-Programmed or Pre-Marked | C, V, Z, Gate, Foldout, Double Parallel | C, V, Z, Gate, Foldout, Double Parallel | -- |
| Minimum Paper Size | 3.5" W x 5" L (88.9mm x 127mm) | 3.5" W x 5" L (88.9mm x 127mm) | 3.5" W x 5" L (88.9mm x 127mm) |
| Maximum Paper Size | 12.25" W x 18" L (311mm x 457mm) | 12.25" W x 18" L (311mm x 457mm) | 12.25" W x 18" L (311mm x 457mm) |
| Languages | English, French, Spanish, German, Italian, Dutch | English, French, Spanish, German, Italian, Dutch | English, French, Spanish, German, Italian, Dutch |
| Dimensions Closed | 33" L x 20" W x 19" H (84mm L x 51mm W x 48mm H) | 33" L x 20" W x 19" H (84mm L x 51mm W x 48mm H) | 33" L x 20" W x 19" H (84mm L x 51mm W x 48mm H) |
| Dimensions Fully Extended | 60" L x 20" W x 19" H (152mm L x 51mm W 48mm H)h | 60" L x 20" W x 19" H (152mm L x 51mm W 48mm H) | 60" L x 20" W x 19" H (152mm L x 51mm W 48mm H) |
| Net Weight | 74 lbs. (34 kg) | 73 lbs. (33 kg) | 67 lbs. (30 kg) |
| Electrical Power | 110-240V 50/60 Hz | 110-240V 50/60 Hz | 110-240V 50/60 Hz |
| Multisheet Feeder | Standard | Optional | Optional |
| Manufacturer Name | Baum |
|---|---|
| SKU | BAUMB12A |
| Adjustment | Automatic |
| Feed Type | Friction |
| Feed Tray Capacity (20 # or 75 gsm) | Up to 500 sheets |
| Production Speed | 20,100 sheets/hr (11" long) |
| Pre-Set/Premarked | 11", 14", 17", A5, A4, A3, B6, B5, B4 |
| Fold Types | C, V, Z, Gate, Foldout, Double Parallel |
| Accepted Paper Sizes | 3.5" Wx 5"L, 12.25" Wx 18"L |
| Paper Weight | Up to 75 gsm |
| Voltage | 110-240V |
| Languages | English, French, Spanish, German, Italian, Dutch |
| Dimensions Closed | 33" L x 20" W x 19" H |
| Dimensions Fully Extended | 60" L x 20" W x 19" H |
| Weight | 73 lbs. |
