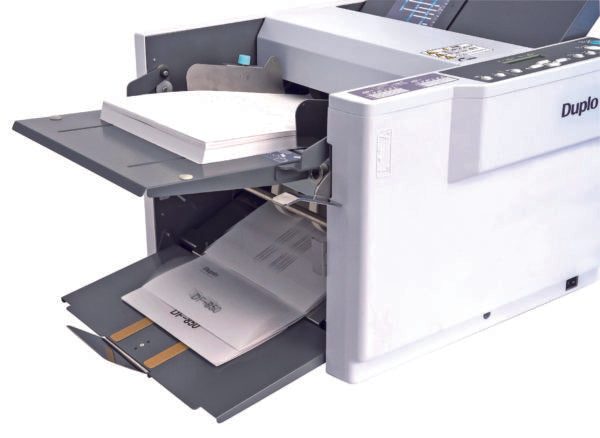

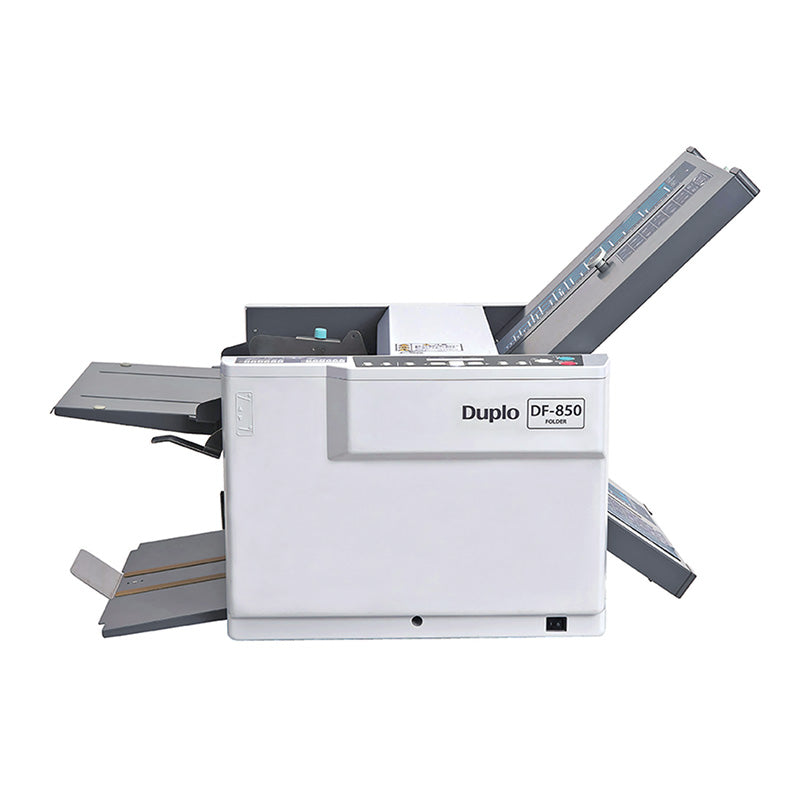

Duplo DF-850 Tabletop Paper Folder
- SKU: DUPDF850
- Max Paper Weight: 157 gsm
- Max Paper Size: 11.7" x 17"
- Adjustment: Manual
- Feed Type: Friction
- Fold Types: Letter, Half, Z-fold, Gate, Engineer, Church
- GTIN/UPC: 096224648883
- Sale price
- Sale price
- $2,900.00
- Unit price
- per
This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please
add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.
Basic Specs of the Duplo DF-850 Folder
- Max Paper Weight: 145 g/m² / 38# Bond / 80# Index
- Max Paper Size:11" x 17"
- Min Paper Size: 5" x 7"
- Paper Type: Non Glossy Paper Only, Call us for Coated Stock
- Feeder Capacity: Up to 500 sheets
- Fold Types: Single, Double, Irregular Accordion, Letter, accordion, Gate, Custom, and Special Right Angle (in 2 passes)
- Speed: 7,200 sheets/hour
- Duty Cycle: Commercial Grade
- Adjustment: Manual
- Feed Type: Friction
- Multi-sheet: No
Features of the DF-850 Duplo Folder
- New paper detect sensor for feed tray instead of switch.
- Adjustable receiving roller, and 2 knobs for fine-tune adjustments to fold setup.

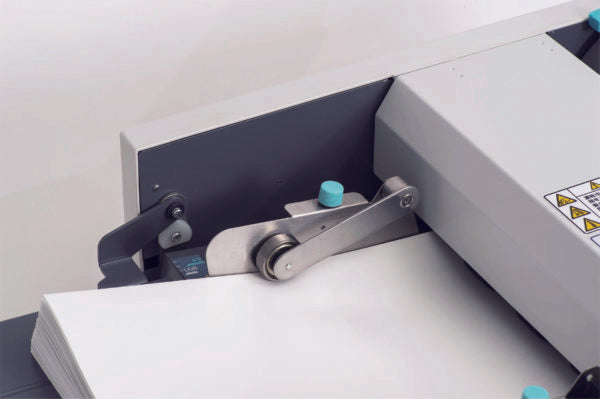

- 3-roller friction feed system, allowing for an extensive variety of paper sizes and weights.
- Simple adjustments for both standard and custom folds.
- Control panel has an LED 4-digit counter with batch and total functions.
- Extended exit tray assures flawless stacking of folded sheets.
- Single sheet feeding auto-adjusts for different weights of paper.
- Auxiliary paper guide for quality cross-folding.
- Load/unload paper from the same side.
- Visual and auditory alerts in case of improper operation.
- Precise skew and micro-adjustment dials.
- Quick-release roller system for quick and easy maintenance.
- All-metal construction.
- Approved by UL and C UL.
Fold Types for the Duplo DF-850
There are seven different fold types available for the 1611: (1) Letter fold (Tri-fold, C-fold), (2) Half-fold (Single fold), (3) Z-fold (Accordion, Zig Zag), (4) Double-Parallel, (5) Gate (Open Gate, Brochure), (6) Engineering (Short Z, Fold Out, Half Accordion), (7) Cross Fold, and (8) Cross Letter
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
The Duplo DF-850 Tabletop Folder offers a fast, affordable and user-friendly solution for your folding needs. Fold documents such as brochures, menus, letters and invoices at up to 241 letter size sheets per minute, and can process 11" x 17" sheets. Perform single, double, half accordion, letter, accordion, and gate folds. Cross folding for right angle folds is also possible.
The DF-850 utilizes a three-roller friction feed system to process a wide range of paper stocks and can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.
With a friction feed system and adjustable paper and feed separator pressure controls, a wider range of paper stock up to 157 gsm can be fed with increased accuracy and consistency. Non-stop productivity is also ensured with an ascending/descending counter and a 500-sheet feed tray capacity. The DF-850 makes folding quick and easy, making it ideal for offices, churches and schools.
Please select your preferred download file for the Duplo DF-850 from the list below.
- Spec Sheet for the Duplo DF-850 Folder (PDF file)
For additional resources, please see:
- Our Paper Weight Conversion Chart for paper weight and paper stock information.
- Our Paper Folder Fold Type Guide to learn more about different fold types.
| Manufacturer Name | Duplo |
|---|---|
| Model # | DF-850 |
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Automatic fold adjustment |
| Feed Tray Capacity | Up to 500 |
| Fold Speed | 7,200 sheets/hour |
| Fold Types | Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Engineering Fold (Short Z) |
| Pre-programmed Standard Folds | 6 |
| Programmable Presets | Yes |
| Counter | Yes |
| Accepted Paper Sizes | 5" x 7" to 11" x 17" |
| Accepted Paper Weights | 13 to 80 lbs. |
| Weight | 71 lbs. |
| Height | 21.1" |
| Width | 24.4" |
| Depth | 18.9" |
| Voltage | 120 Volts; other voltages available |
| Warranty | Click here to view warranty |
| Shipping Weight | 71.0 lbs. |
