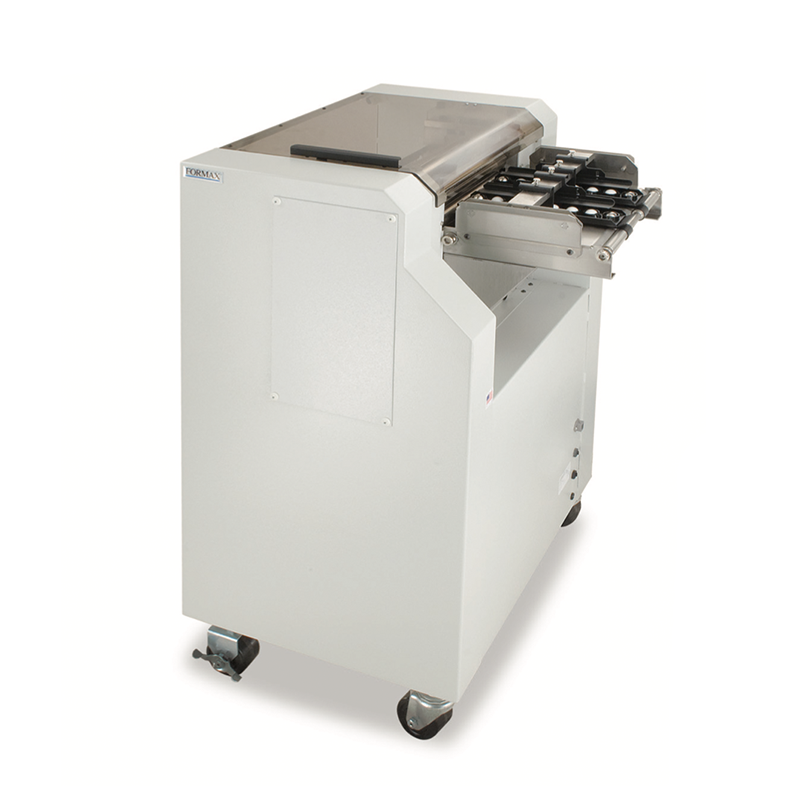

Formax FD 2200-10 High Volume Pressure Sealer
Formax FD 2200-10 Pressure Sealer Pressure Sealers Formax
Formax FD 2200-10 High Volume Pressure Sealer
Formax FD 2200-10 Pressure Sealer Pressure Sealers Formax



Formax FD 2200-10 High Volume Pressure Sealer

  • SKU: BESFD2200-10
  • GTIN/UPC: 096224656666
  • Mfr. Part No.: FD 2200-10
$29,995.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

The 2200-10 Formax pressure sealer is the ideal solution for those who are looking to use existing floor model sealers. The advantage is the ability to buy a "sealer-only" system, which greatly decreases the up-front cost of adding pressure seal capability.

Basic Specs of the 2200-10 Formax Folder Sealer

  • Speed: Fixed speed of 40,000 forms/hour
  • Paper Size: Up to 11.5” wide
  • Dimensions: 25” W x 24” L x 38.5” - 39” H
  • Motor: 1/2 HP AC
  • Power: 240V, Single Phase
  • Power Input Connection: 240 Volts
  • Signal Input Connection: 240 Volts to start relay
  • Fault Detection Connection: 24 Volt

Features of the 2200-10 Formax Folder Sealer

  • Stand-alone sealing system.
  • Speed of 40,000 pieces/hour.
  • Heavy duty construction and 2 fixed locking, swivel casters.
  • High-production precision clutching pressure rollers.
  • Fault detection.
  • Clutching roller system (reduces wear).
  • Safety cover interlock (shuts down system if cover open).
  • Static eliminator.
  • Interface connections.
  • Plexi-cover (users can watch forms pass through sealer).
  • 8-ball transport deck.
  • Mounting bracket (to attach sealer to the folder).

Description of the Formax FD 2200-10 Stand-Alone Pressure Sealer

The Formax FD 2200-10 stand-alone pressure sealer is the ideal high-volume resolution for those who are looking to use existing floor model sealers. The big advantage here is the capability of buying a "sealer-only" system, as opposed to the FD 2200-10 in-line with a folder. It significantly decreases the up-front cost of adding pressure seal ability. This folder sealer can handle a lot; its heavy duty design is made for fulfillment centers and other high-volume environments.

The FD 2200-10 uses a pressure seal system that processes forms at a high speed of 40,000 pieces an hour. It uses a high-production precision ground clutching 4-roller system, which decreases motor and belt wear when double feeds are detected. Static electricity is reduced with the static brush that also helps in neat stacking of the finished products. The Formax FD 2200-10 stand-alone folder sealer is a powerful system with many convenient features.

Strengths

  • "Sealer-only" system; significantly diminished up-front cost of adding pressure sealing capability.

Manufacturer Name Formax
Feed Type Air-fed
Fold Adjustment Setting Automatic fold adjustment
Speed 40,000 forms/hour
Programmable Presets 18
Fold Types Letter Fold (Tri), Half Fold, Z Fold, Double Parallel Fold, Cross Fold
Accepted Paper Sizes Up to 11 1/2" W
Duty Cycle Production Volume
Model # 2200-10
Weight 180 lbs.
Height 39 inches
Width 24 inches
Depth 25 inches
Voltage 240 Volts; other voltages available
Warranty Click here to view warranty
Shipping Weight 180 lbs.
