FD 4170 Cut Sheet Burster
Formax FD 4170 Cut Sheet Burster Bursters Formax

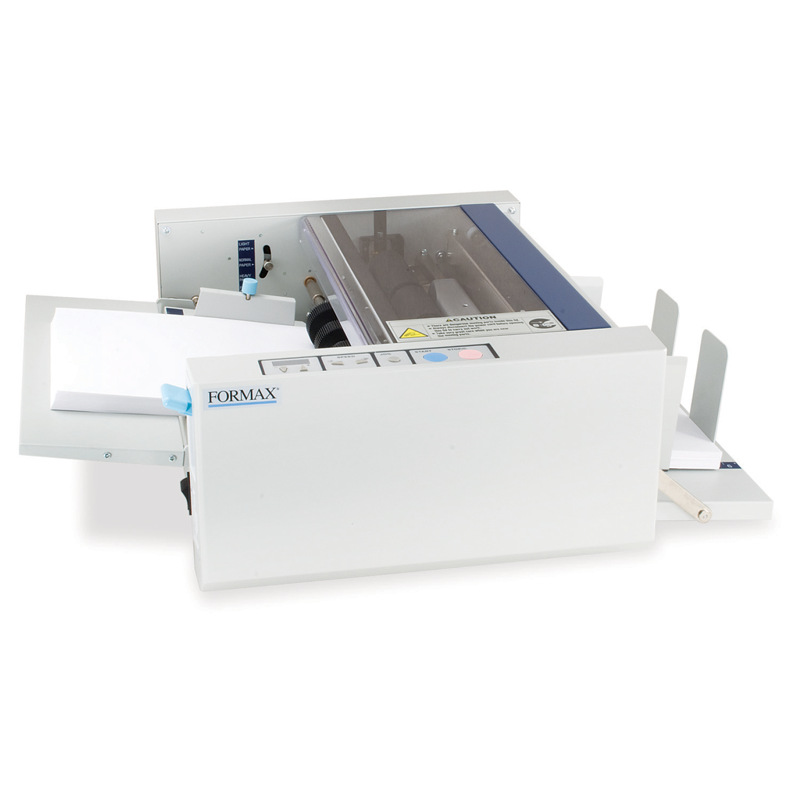

FD 4170 Cut Sheet Burster
Formax FD 4170 Cut Sheet Burster Bursters Formax

Formax FD 4170 Cut Sheet Burster

  • SKU: BESFD4170
  • GTIN/UPC: 096224654174
  • Mfr. Part No.: FD 4170
Sale price
Sale price
$8,250.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Formax FD 4170 Cut Sheet Burster

  • Trim Size: 0 inches
  • Paper Size: 5” - 17” H x 4” - 11” W
  • Speed: 42-140 sheets/minute
  • Paper Weight: 13-110 lbs.
  • Electrical: 120 V
  • Dim: 32" L x 16" W x 9" H
  • Weight: 56 lbs.

Features of the Formax FD 4170 Cut Sheet Burster

  • 5-level speed adjustment: 42, 64, 89, 114, 140 sheets per minute.

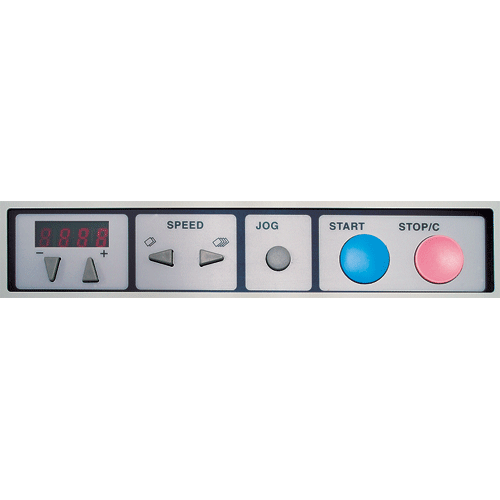

  • 4-digit LCD Counter.
  • Feed tray capacity of up to 400 sheets.
  • Three-tire, top-loading feed system.
  • Accommodates a wide range of paper stock, up to 110# index (175gsm).
  • Paper sizes up to 11” x 17.”
  • Adjustable side guides for different form widths.
  • Last job memory.
  • Pre-programmed cut settings for 11”, 14”, 17” paper.
  • Programmable job settings.
The new Formax FD 4170 Cut Sheet Burster is an ideal finishing solution for multiple forms printed on a single page.

Description of the Formax FD 4170 Cut Sheet Burster

In the modern world, it seems odd to say that some office and business procedures have to be tackled by hand, but that is often the case with forms "bursting". This is the process by which multiple or continuous forms all printed at one time will have to be manually separated and sorted. As an example, a batch of monthly invoices is printed on multiple forms that are joined together by pre-perforated seams. When the print work is done, someone has to separate all of the forms and stack them up for further handling. Fortunately, the Formax FD 4170 Cut Sheet Burster is a device that can tackle this work and eliminate the time spent in manually separating documents. Essentially, the Formax FD 4170 Cut Sheet Burster is a very simple device that is completely adjustable and capable of handling an impressively large amount of work in a short space of time. It will use one or two passes to separate multiple forms that are printed on the same sheet. The unit can accept sheets as small as 5x4, but can also tackle pages of 17x11 as well.

Speed for the Formax FD 4170 Cut Sheet Burster will vary and is completely adjustable. There are five levels that range from 42 sheets per minute up to 140. The unit can hold up 400 pages at one time and at weights up to 110# index stock. The Formax FD 4170 Cut Sheet Burster is extremely easy to use and can even be programmed for frequent or common bursting jobs. The user simply inserts the sheets into the infeed tray, or sends them directly from their printer into the feeding area. The machine will then burst the pages at their perforations and stack the individual sheets sequentially at the speed required. There is even an air jog feature that helps to prevent any sticking during multiple passes as well.

This unit has a handy LCD counter to ensure that the appropriate number of sheets have been handled and burst. The adjustable side guides make it easy to maintain the efficiency of the machine, and this unit is ideally suited for high volume bursting at a professional level. Whether you need forms and invoices or massive quantities of payroll checks burst automatically, this unit is a solid performer. It is up to date and reliable, relatively portable, and extremely easy to use.

Manufacturer Name Formax
Speed 40-140 sheets/minute
Feed Tray Capacity Up to 400 sheets
Max Form Size 11" x 17"
Min Form Size 4" x 5"
Model # FD 4170
Paper Weight 13# bond - 110# index (58 - 175 gsm)
Min./Max. Burst Length 2.5” - 9.9”
Weight 56 lbs.
Height 9"
Width 32"
Depth 16"
Voltage 120 Volts; other voltages available
Warranty Click here to view warranty
Shipping Weight 79.0 lbs.
Shipping Length 24
Shipping Width 30
Shipping Height 17
