Formax AutoSeal FD 1606 Mid Volume Pressure Sealer

  • SKU: BESFD1606
  • Hopper Capacity: 200 sheets @ 20 lb
  • Fixed Speed: 100 sheets/min
  • Mfr. Part No.: FD1606
$8,195.00
(1)
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

The FD 1606 AutoSeal is an ideal mid-volume solution for processing one-piece pressure-sensitive mailers. It features automatic fold plates and an innovative graphics-based color touchscreen control panel - one of the first in the industry. The touchscreen uses internationally-recognized symbols in place of text, making it easy for anyone to use.

Basic Specs of the Formax FD 1606 Autoseal Pressure Sealer

  • Fixed Speed: Up to 100 sheets per minute
  • Hopper Capacity: Up to 200 sheets 20#
  • Paper Size: Up to 8.5" W x 14" L
  • Fold Types: Folds Z, C, Uneven Z, Uneven C, Half and custom folds
  • Monthly Duty Cycle: Up to 35,000/month
  • Document Sequence: Standard sequence is A-to-Z input, Z-to-A output
  • Control Panel: Color touchscreen control

Features of the Formax FD 1606 Autoseal Pressure Sealer

  • An ideal solution for any school, municipality, or small business that requires the versatility and dependability of a well-built pressure sealer.
  • Automatic and auto-adjusting fold plates.
  • Drop-in top feed system produces dependable feeding of forms with no paper fanning required.
  • Compact desktop design provides easy installation and operation.
  • Flexibility to process forms up to 14” in length.
  • Heavy-duty steel construction offers the dependability and power expected of a larger unit in a smaller package.
  • Color touchscreen control panel is graphics-based and designed for easy, walk-up use.
  • 6-digit resettable counter provides maximum audit control.
  • Made in USA.

Options for the Formax FD 1606 Autoseal Pressure Sealer

  • 18" Conveyor with Photo Eye
  • Locking Cabinet
  • 402 Series Jogger
  • Reverse Stacking Conveyor

Description of the Formax FD 1606 Autoseal Pressure Sealer

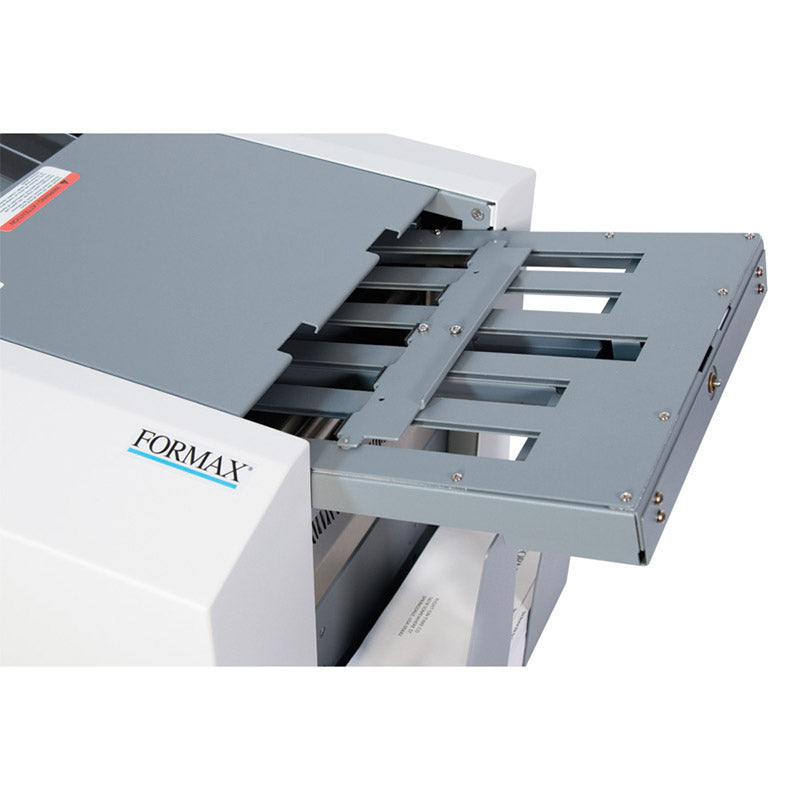

With a speed of up to 100 forms per minute, the FD 1606 enables operators to complete daily jobs in no time. Automatic fold plates are clearly marked and easy to adjust, making the FD 1606 a breeze to set up, right out of the box. With the capacity to process 14" forms, it has the versatility to fold and seal virtually any mid-volume application to meet your needs. Fold plates are marked for four standard folds - Z, C, Uneven Z, and Half folds - and can be easily reset for custom folds including Eccentric Z and C-fold mailers.

Pressure seal forms are ideal for checks, invoices, marketing pieces, school reports and any other mail piece that can be printed on one form. Simply load the forms, set the fold type, and press the start icon. In minutes, you'll have folded and sealed pieces, ready for the mail, without the hassle and expense of envelopes.

Dependable & Powerful - The FD 1606 is built with proven Formax technology. Heavy-duty steel construction offers the dependability and power expected of a larger unit in a smaller package. A hopper capacity of up to 200 forms, and processing speed of up to 100 forms per minute enables an operator to complete daily jobs in no time.

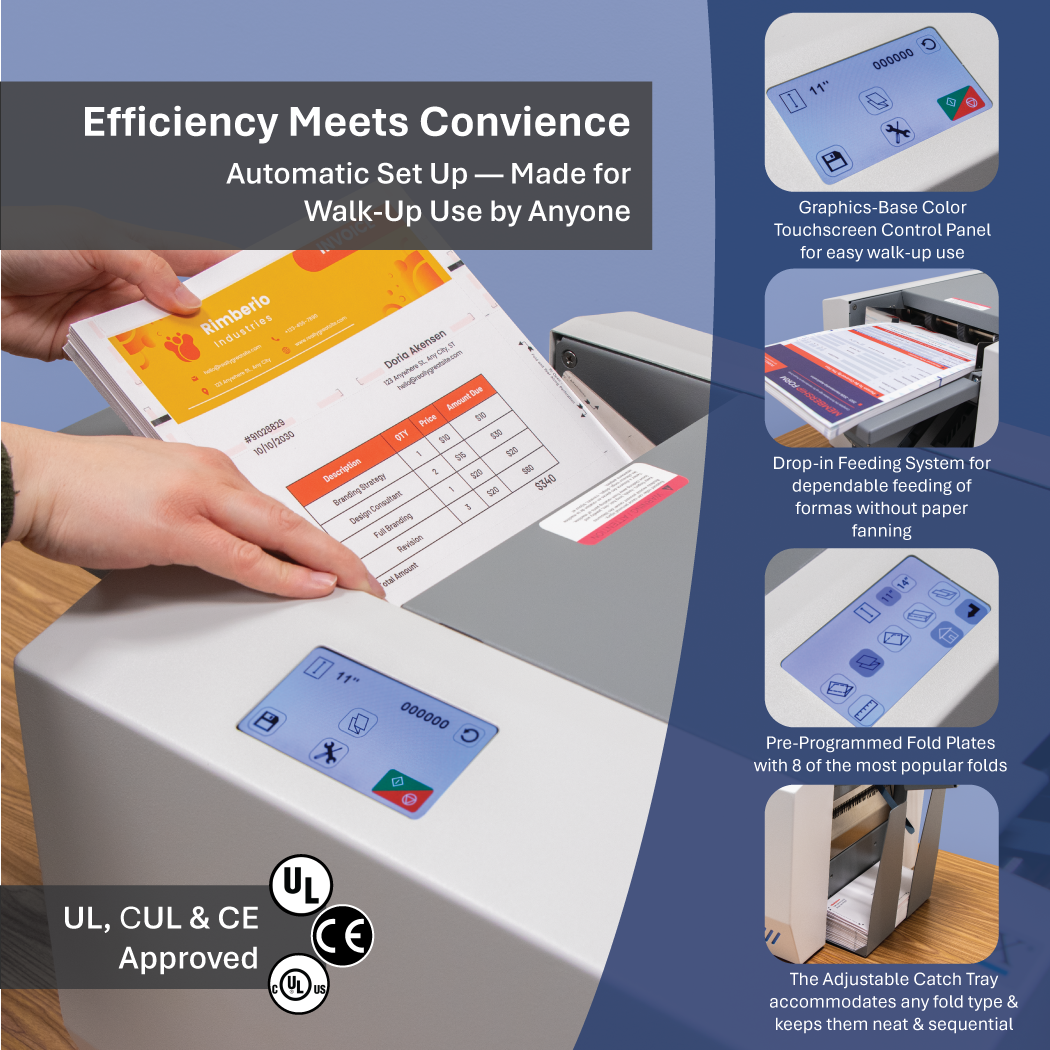

Easy to Operate - The FD 1606 is designed for user friendly operation with its graphics-based full-color touchscreen and automatic fold plates. Simply set your folds using the touchscreen, and the plates will automatically adjust for fold type and form length. Next, load your forms using the drop-in feed system, press start and you’re on your way. The FD 1606 also includes a six-digit counter for audit control.

Please select your preferred download file from below.

Hopper Capacity Up to 200 Sheets 20#
Fixed Speed Up to 100 sheets per minute - based on 11” “Z” fold
Paper Size* Up to 8.5’’ W x 14” L
Monthly Duty Cycle Up to 35,000/month
Power FD Model: 120 Volts AC 50/60Hz
FE Model: 220 Volts AC 50/60Hz

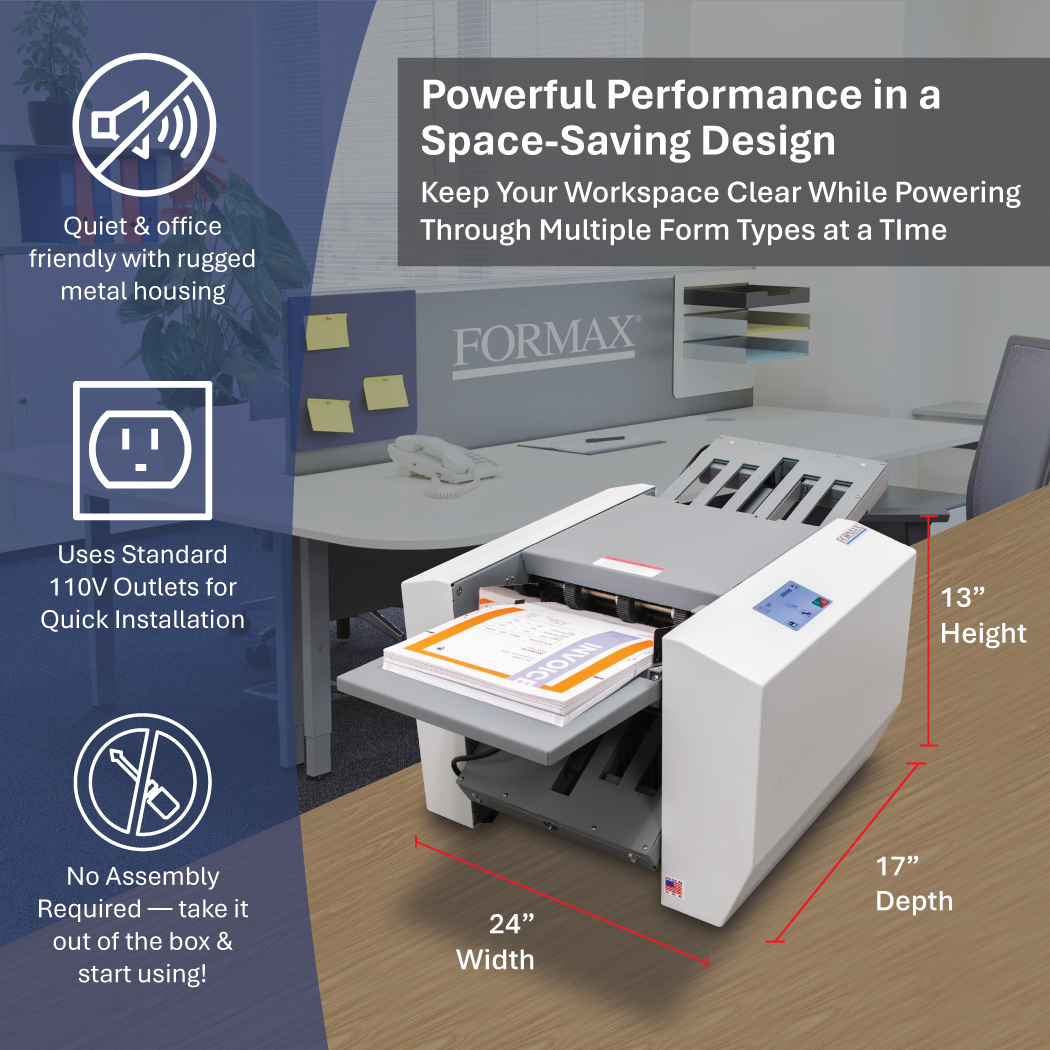

Dimensions 24” L x 17” W x 13” H
Weight 82 lbs.
Document Sequence Standard sequence is A-to-Z input, Z-to-A output
Certifications UL, CE and CUL Approved
Made in the USA
