Formax AutoSeal FD 2300 Series High Volume Pressure Sealer

  • SKU: BESFD2300
  • GTIN/UPC: 096224649781
  • Mfr. Part No.: FD 2300
$112,495.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Formax Autoseal 2300 Series

  • Variable Speed: Up to 43,000 sheets per hour – based on 11” Z-Fold (279mm)
  • Paper Size: FD 2300/2350/2380 is up to 11.5” W x 25” L (292 W x 635 L mm), and FD 2300-EX/FD 2300-EXT is up to 11.5” W x 14” L (292 W x 356 L mm)
  • Usage: Production
  • Power: 208V, three phase, 20 Amp** (Special 3 Phase Power Required) NEMA L21-20P plug included, NEMA L21-20R receptacle required
  • Dimensions: Cut-sheet models are 152” L x 30” W x 56” H (386 L x 76 W x 142 H cm) and FD 2380 is 167” L x 30” W x 56” H (425 L x 76 W x 142 H cm)
  • Certifications: UL applied for

Features of the Formax Autoseal 2300 Series

  • Variable speed of up to 43,000 pieces/hour.
  • There is an unlimited duty cycle.
  • Program up to 200 jobs.

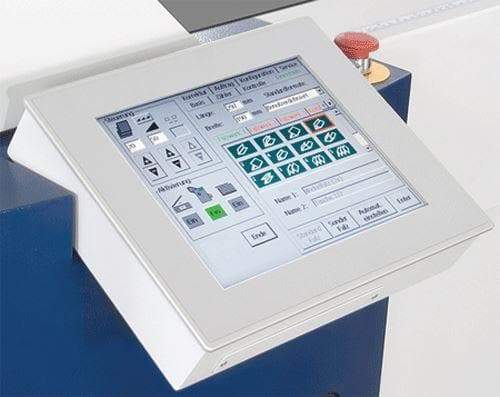

  • There is a graphics based, color touchscreen control panel.
  • Heavy duty construction.
  • Feed systems include air, extended air, pile, and continuous forms with in-line Maxi Burster.
  • There are automatic settings.
  • 6-digit resettable counter and batch counter.
  • 4 insulated fold plates.
  • The fold types are half, C, Z, uneven Z and custom.
  • There is a conveyor with photo eye.
  • There is a fault detector.
  • There is a static eliminator.
  • Interlocks for fault detection and safety.
  • Combination rollers (steel and polyurethane for durability).

*Delivery requirements: Customer supplied fork lift is required for installation and setup.

Video of the Formax Autoseal 2300 Series Pressure Sealer


Description of the Formax Autoseal 2300 Series Pressure Sealer

The AutoSeal 2300 Series Pressure Sealers are designed to process high-volume jobs- up to 40,000 forms per hour, with an unlimited monthly duty cycle. Using the graphics-based color touchscreen, operators can program up to 200custom jobs, and process forms up to 11.5” wide and 25” long.

Fully automated settings include the feeder, alignment rails, fold plate stops, deflectors and fold rollers, and delivery rollers. Standard features include an extendable output conveyor, safety interlocks, jam detection, addition/batch counter, and static eliminator.

The Formax AutoSeal 2300 Series has three different models available:

  • FD 2300 Air Feed System: Up to 500 form capacity
  • FD 2300-EXT Extended Air Feed System: Up to 2,500 form capacity
  • FD 2350 Pile-Loader Infeed:Up to 3,500 form capacity

Product Downloads

Please select your preferred download file from below.

Manufacturer Name Formax
Feed Type Air-fed
Fold Adjustment Setting Automatic fold adjustment
Feed Tray Capacity Up to 500
Speed 43,000 forms/hour
Pre-Programmed Folds 20
Counter Yes
Batcher Yes
Fold Types Half Fold, Z Fold, C Fold, Uneven Z Fold
Variable Speed Yes
Accepted Paper Sizes Up to 11 1/2" W x 25" L
Duty Cycle Production Volume
Model # FD 2300
Weight 1,200 lbs.
Height 56" (max)
Width 167" (max)
Depth 30" (max)
Voltage 208 Volts; other voltages available
Warranty Click here to view warranty
Shipping Weight 1,200 lbs.
