Formax ColorMax LP3 Color Label Printer
- SKU: BESCOLORMAXLP3
- Mfr. Part No.: ColorMaxLP3
This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

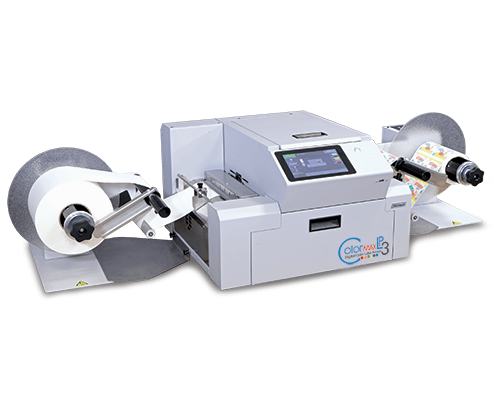

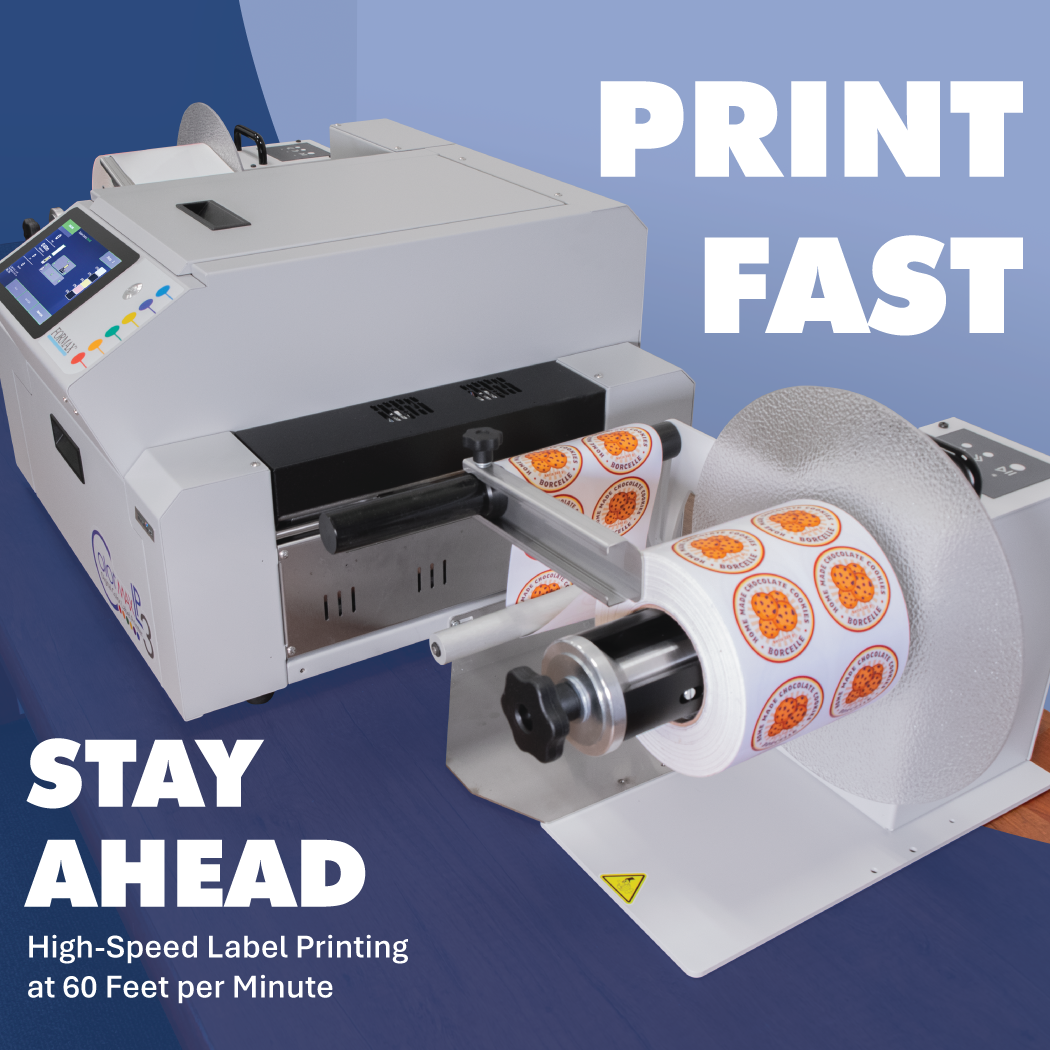

The ColorMaxLP3 Digital Color Label Printer produces brilliant full-color labels at speeds of up to 60 feet per minute, in a compact unit powerful enough for a production print environment. Features include a large color touchscreen, an enhanced print engine and unwinder/rewinder system.

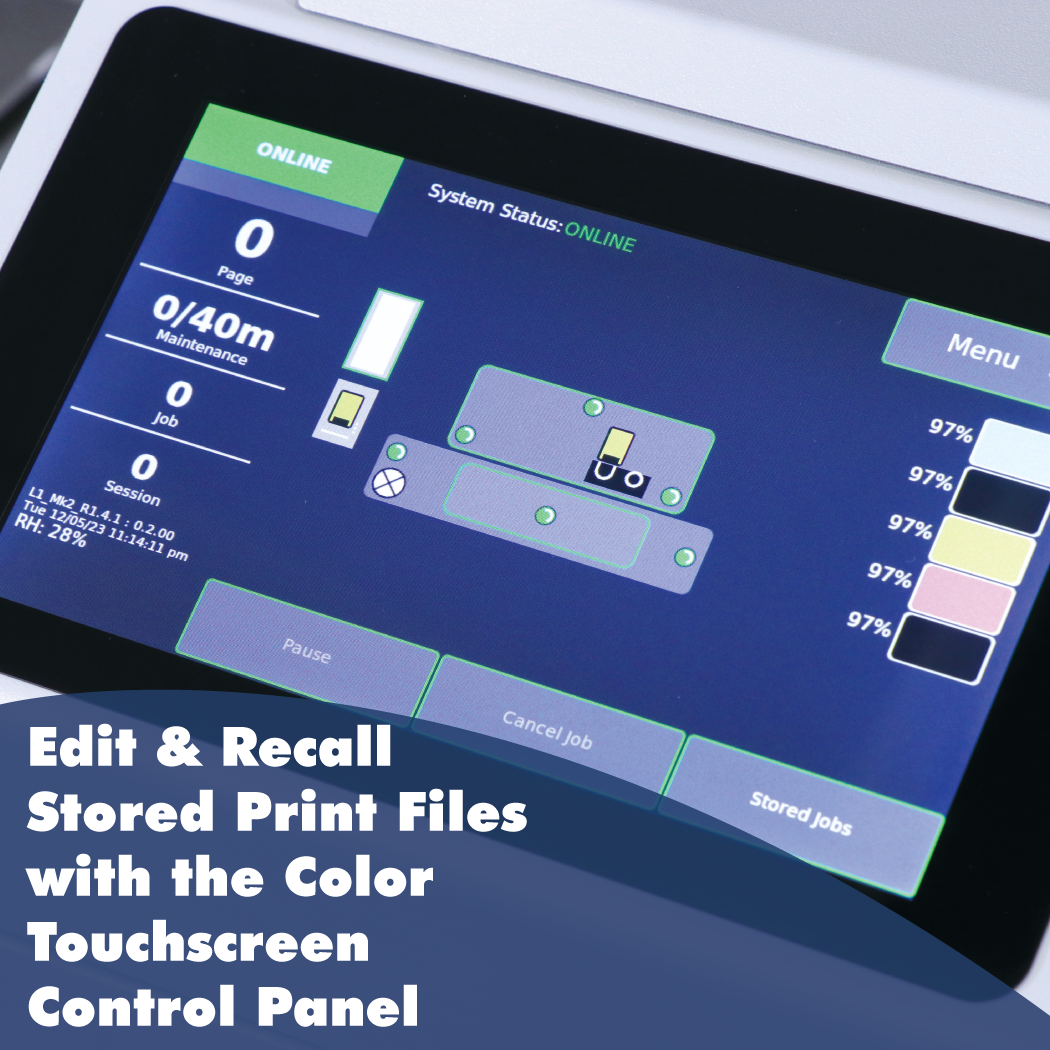

The 7-inch touchscreen gives operators complete control over the printing process, with an intuitive interface, image preview, and the ability to store print jobs for quick and easy processing. The revolutionary print engine design allows users to service and maintain the print head "on the fly," keeping the web intact throughout print runs.

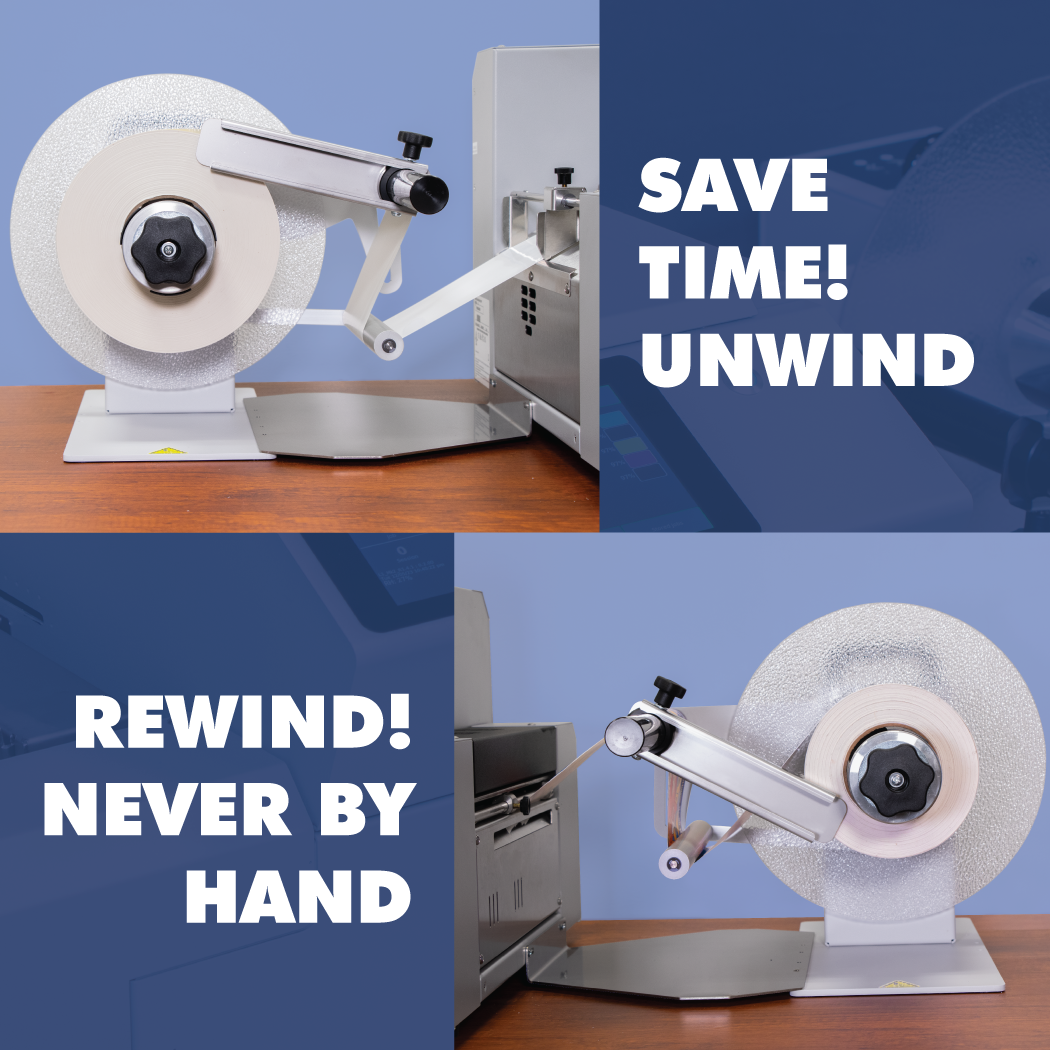

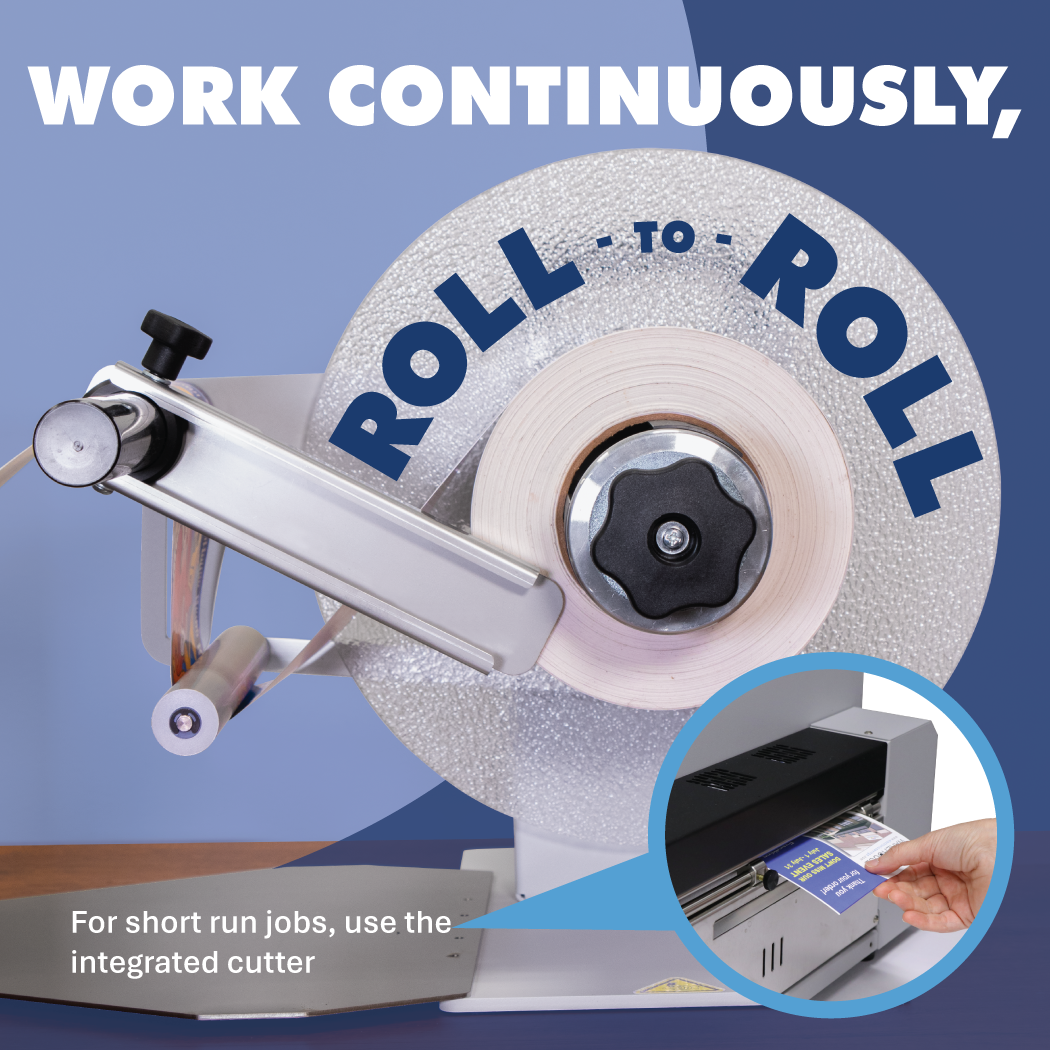

This compact all-metal printer is industrial-grade, designed for all-day production, and features a high-speed Unwinder/Rewinder System for continuous roll-to-roll printing. It easily handles rolls up to 10 inches in outside diameter for high-volume print jobs and reduced media costs. For smaller jobs, the integrated cutter allows for print-and-cut operation.

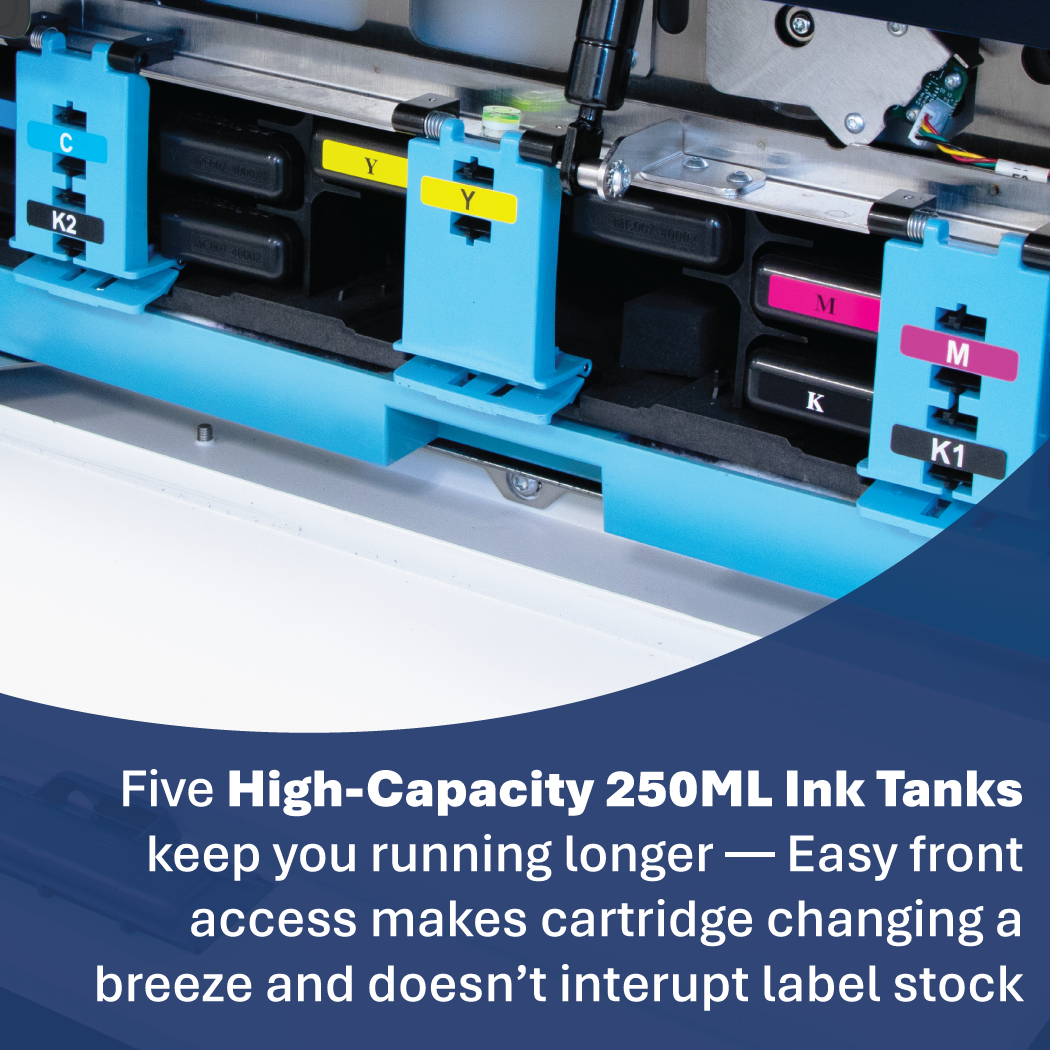

Utilizing 5 high-capacity 250ml ink tanks allows for longer uninterrupted print runs. When ink does need to be replaced, the front access door makes it easy, without having to remove label stock from the print area and rewinder, keeping the web intact. The ColorMaxLP3 prints on variety of label sizes and stocks, including paper, polyester, polypropylene and vinyl, with full bleed capability up to 8.5 inches wide.

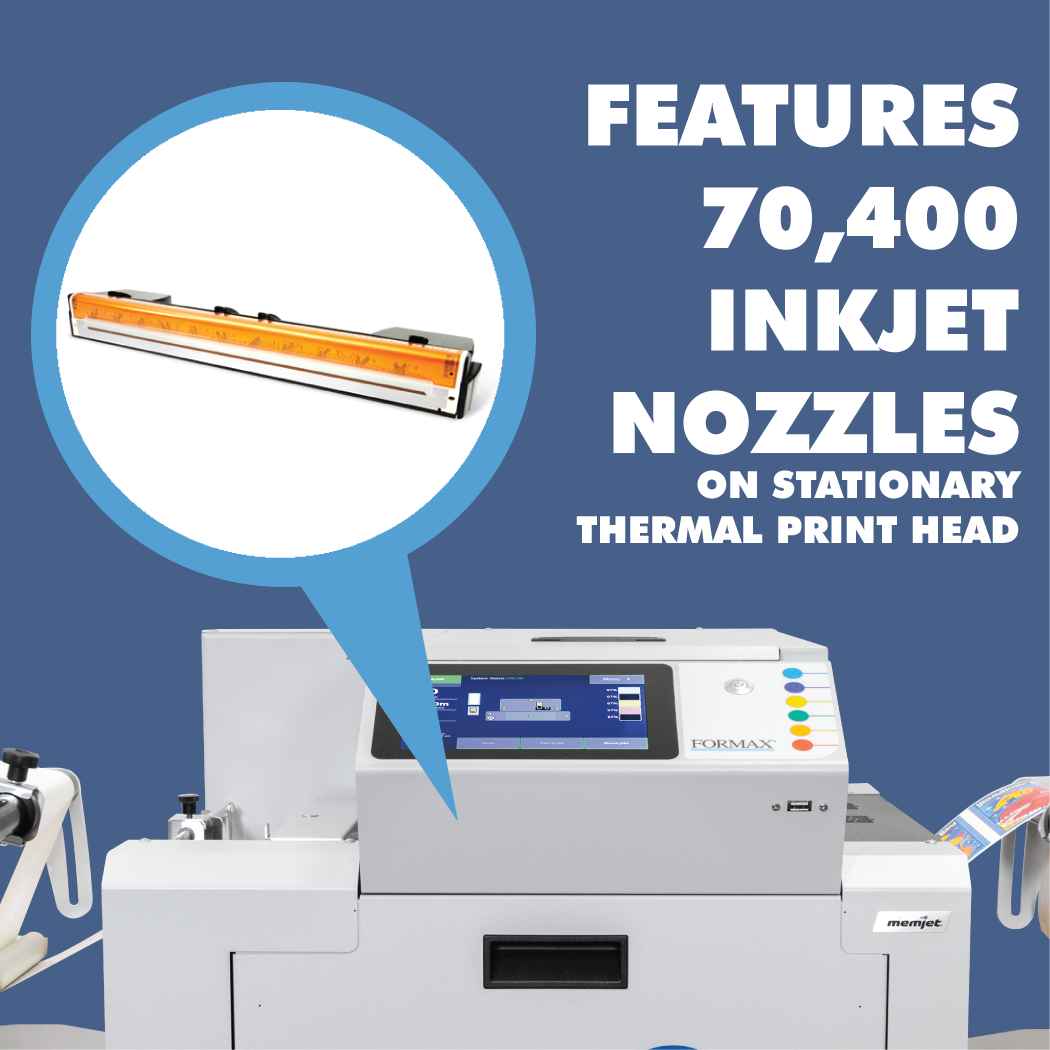

Its thermal inkjet print head features 70,400 inkjet nozzles and no moving parts. This offers higher speeds, more precise printing using less ink, less noise and lower maintenance costs than standard print heads. The professional-quality 1600 x 1600 DPI produces exceptionally crisp text, barcodes and images with vibrant color, and deep rich black tones.
Combining high speeds, stunning CMYK output, and a user-friendly interface, the ColorMaxLP3 is the ideal solution for all-day label printing in a production environment.
Options include the CCS8 Command Station, a freestanding workstation with PC and 32-inch curved monitor.
Please select your preferred download file from below.
- Spec Sheet for the Formax ColorMax LP3 (PDF file)
| Manufacturer Name | Formax |
|---|---|
| Model | ColorMax LP3 |
| Print Speed | Up to 12 inches per second / 60 fpm |
| Color Matrix | Up to 16.8 million colors |
| Label Media Size | Min: 1” W x 1” L, Max: 9” - 75” |
| Label Media Thickness | Min: 0.1mm, Max: 0.3mm |
| Label Types | Roll or fanfold |
| Print Resolution | Up to 1600 x 1600 DPI, 1600 x 800 DPI |
| Print Width | Up to 8.5” W x 75” L (21 x 191cm) |
| Minimum Label Gap | No bleed: 3mm, Full bleed: 5mm |
| Media Sensing | Continuous, black mark, die cut |

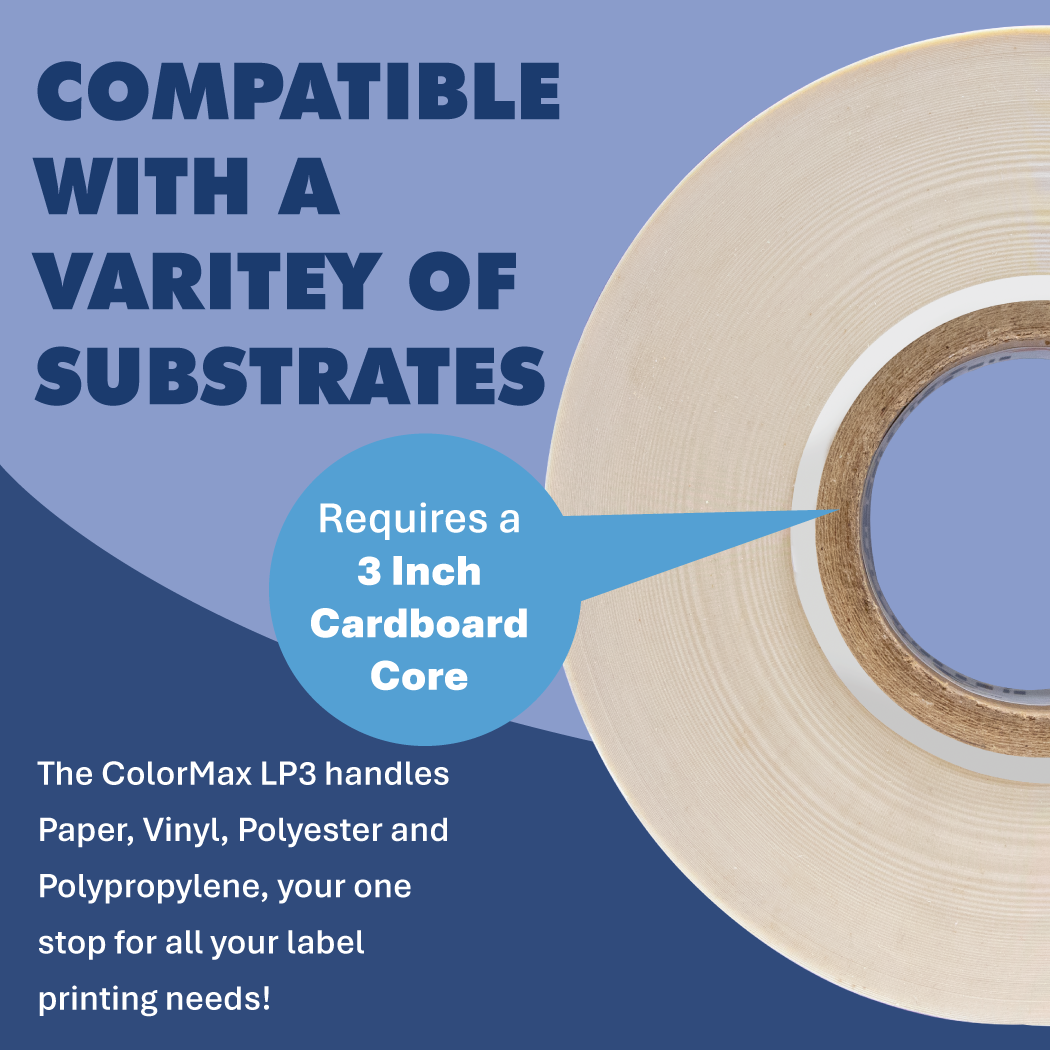

| Core Diameter | Requires 3” cardboard core |
| Ink Tank Capacity | C 250ml, M 250ml, Y 250ml, K 250ml x2 |
| Print Cartridge | Memjet replaceable print head |
| Diagnostics | 7” touchscreen, L-Series toolbox |
| Computer Operating System | Windows 8, 8.1 and 10, RIP available |
| Interfaces | USB 2.0 and Ethernet |
| Data Storage | Onboard Job Library |
| Dimensions | 59.5” W x 20” H x 14” D |
| Power/Voltage | 100-240VAC, 50/60 Hz |
| Warranty | Click here to view warranty |
