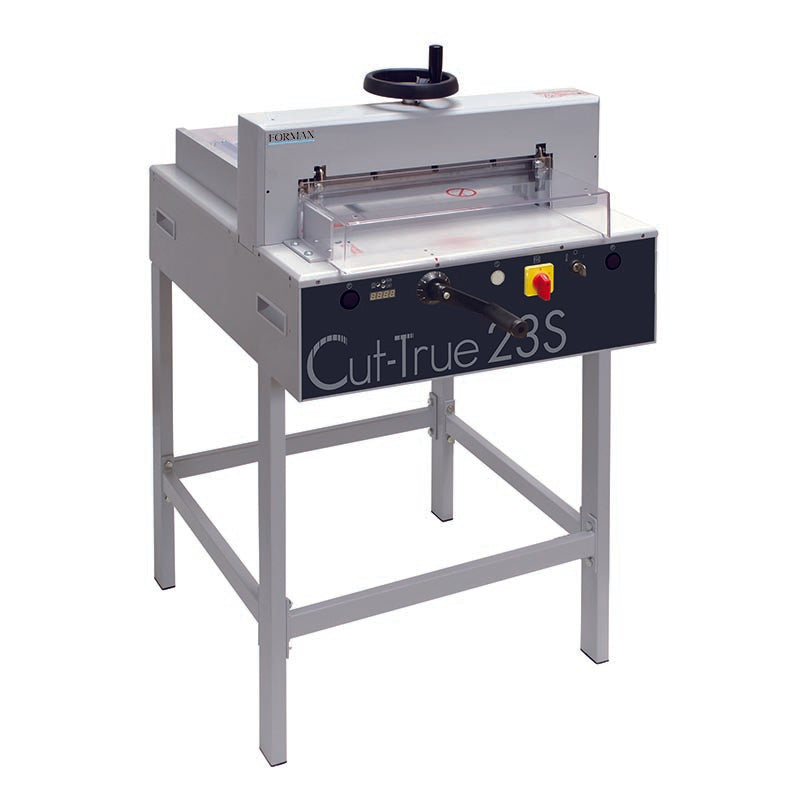

Formax Cut-True 23S Semi-Automatic Guillotine Cutter
- SKU: BESCut-True23S
- Cut Height: 1.75"
- Cut Width: 16.9"
- Type: Semi-Automatic
- Cut Thickness: 1.75"
- Mfr. Part No.: Cut-True 23S
This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please
add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.
The Cut-True 23S Semi-Automatic Electric Cutter offers precision cutting for paper stacks up to 16.9” wide. This semi-automatic cutter requires very little effort, thanks to its electronically-controlled two-button operation. Simply load a stack of paper, up to 1.77” high, secure with the geared clamp, and press the buttons to engage the hardened-steel Guillotine blade.
Accurate cutting is easy with its spindle-guided back gauge with LED digital display and calibrated scales. Using these and the LED Laser Line, operators can make fine adjustments, and see exactly where the blade will cut.
The 23S doesn’t sacrifice safety for accuracy. In fact, it features an electronically-controlled front safety cover, transparent rear cover, safety lock with key, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment. The rugged metal stand is included, providing a stable work surface, as well as feet for tabletop use.
The Cut-True 23S is ideal for transforming brochures, invitations and more, with crisp, accurate cuts, and makes a welcome addition to print shops and in-plant finishing operations.
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| Model # | Cut-True 23S |
| Max Cutting Width | 16.9 inches |
| Cutting Height | 1.75 inches |
| Cutting Mode | Semi-Automatic |
| Cutting Length Behind Blade | 17 inches |
| Cutting Length in Front of Blade | 8.25 inches |
| Narrow Cut | 1.89 inches |
| Clamp Style | Spindle-guided clamping wheel |
| Blade Construction | Hardened steel |
| Back Gauge Adjustment | Manual crank |
| Back Gauge Readout | Digital readout, in both standard and metric |
| Table Size | 24.6"W x 27.5"D |
| Product Weight | 199 lbs. |
| Product Dimensions | 46.75"H x 24.75"W x 33"D |
