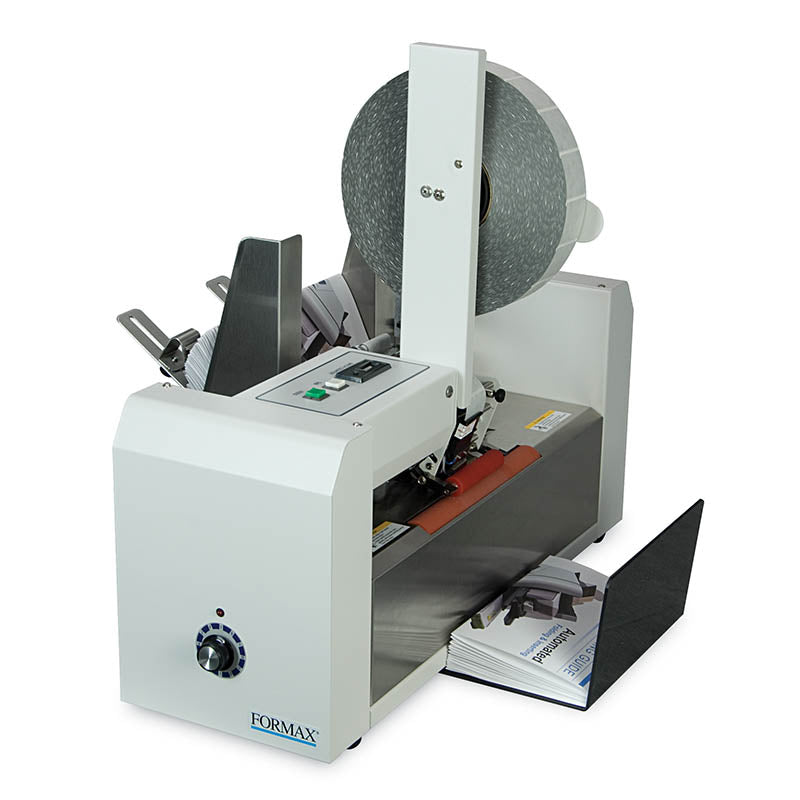

Formax FD 262 Single Head Tabbing Machine

  • SKU: BESFD262
  • GTIN/UPC: 00784682102619
  • Mfr. Part No.: FD 262
$7,916.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

The Formax FD 262 Single Head Tabbing System is the quick, dependable way to apply tabs to folded mail. With "crash tab" technology, an adhesive tab is affixed to the open edge of a mail piece and then travels through the rollers of the FD 262 to be folded and sealed and made ready for mailing. The FD 262 can tab up to 12,000 pieces per hour (8-1/2" tri-folds).

Basic Specs of the Formax FD 262 Tabbing Machine

  • Speed: Up to 12,000 pieces per hour (8.5" tri-folds)
  • Media Size: 3" to 18" L, and 5" to 17" W
  • Media Thickness: Up to 5/32"
  • Tab Sensitivity Control: Adjusts for density in tab/wafer seals
  • Tabs Applied: 1 tab per pass
  • Tab Roll Capacity: Up to 10,000 tabs
  • Tab Roll Size: Maximum roll diameter is 9"; Core diameter is 3"

Features of the Formax FD 262 Tabbing Machine

  • Feeder capacity is up to 200 tri-folds; Integrated bottom feeder for continuous operation.
  • Uses 5/8" to 1-1/2" translucent, paper or clear tabs.
  • Easy to use push button controls.
  • Resettable LCD counter.
  • Duty cycle of up to 30 million addresses or 500,000 per month over a 5-year cycle.

The Formax FD 262 Single-Head Tabber makes quick work of applying tabs to folded mail pieces, and is designed to meet all USPS requirements for mailing and automation discounts. Using "crash tab" technology, the open edge of a mail piece contacts an adhesive tab and travels through a set of rollers where the tab is tightly folded and sealed, creating a mail-ready piece.

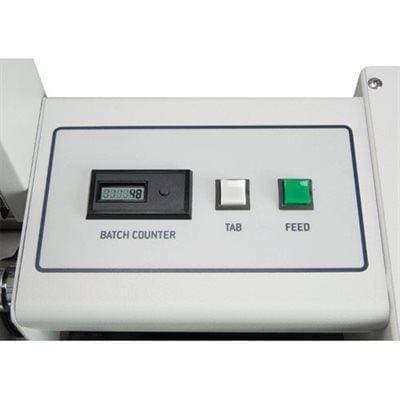

The FD 262 tabs up to 12,000 pieces per hour (8-1/2” tri-folds), and handles media up to 17” wide, up to 5/32” thick. Its advanced design includes an integrated bottom feeder allowing for continuous operation, and a built-in waste take-up spool to reduce down time. The user-friendly controls include a 5-digit resettable LCD counter and a tab sensitivity control to adjust for tab stock density.

Various tab stocks can be used, including translucent, paper, and clear in sizes up to 1-1/2” in diameter. To meet USPS requirements, the mail piece can be fed through in different directions, to apply tabs in various locations. The optional FD 282-30 3-foot Drop-Stacking Conveyor offers adjustable speed from 0 - 124 fpm, and stacks tabbed pieces in a neat, sequential order for easy removal.

With ever-changing postal regulations, having the dependable, efficient FD 262 Tabbing System can make your mailings compliant with very little effort.

Please select your preferred download file from below.

Manufacturer Name Formax
Speed 12,000 pieces/hour (single tab)
Max Media Thickness Up to 5/32" thick
Max Media Dimensions (L x W) 3" - 18"L x 5" - 17" W
Max Media Width 17"
Tab Materials Clear, translucent or paper
Tab Size 5/8" to 1-1/2"
Tabbing Capability Yes
Model # 262
Manufacturer Part Number FD262
Weight 40 lbs.
Height 22"
Depth 15.5"
Width 25"
Voltage 110VAC 50/60Hz
Warranty Click here to view warranty
Shipping Weight 55.00
Shipping Length 40
Shipping Width 35
Shipping Height 38
