HSM SP 5088 1/4" x 1-9/16"- 2-1/16" 3x400V Shredder Baler

  • SKU: HSMSP5088-2990414114
  • Security: Level 3/P-4
  • Sheet Capacity: 450 sheets*
  • Throat: 19.7"
  • GTIN/UPC: 096224652101
  • Mfr. Part No.: HSM365511

This product has limited availability and/or is build-to-order.
Please call us at (800) 243-9226 or fill out the Request a Quote form, below.

Request A Quote
Need Advice?
Call us at (800) 243-9226

The HSM SP 5088 shredder/baler combination unit breaks down your paper materials into security level 3 pieces to produce perfect bales.

Basic Specs of the HSM SP 5088 Shredder Baler

  • Shred Size: 0.24 inch
  • Throat Width: 19.7 inches
  • Sheet Capacity: Up to 450 sheets *
  • Shred Speed: 8.27 inches per second
  • Power: 400V/50Hz/11500W
  • Pressing Power: 85kN
  • Shipping Weight: 3,660 lbs.
  • Dimensions: 71"H x 49"W x 127"D
  • Baler Dimensions: 15.7" x 37.4" x 19.7" W x 19.7" H

Features of the HSM SP 5088 Shredder Baler

  • Multifunctional keypad control for constant operation and reverse as well as automatic reverse
  • Integrated, automatic oiler for cutting unit
  • Emergency stop-rail in front of loading table for more user safety
  • Photoelectric cell for automatic control of the pressing process
  • Baler with loading aperture/inspection flap for non-confidential documents or cardboard
  • Manual 3-fold bale strapping with continuous polyester tape

Video Demo of the HSM SP 5088 1/4"x1 9/16"- 2 1/16" 3x400V Shredder Baler


Description of the HSM SP 5088 1/4"x1-9/16"- 2-1/16" 3x400V Shredder Baler

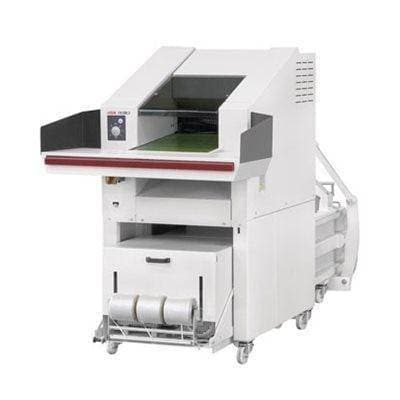

Durability. Reliability. Power. The HSM 5088 shredder/baler offers all of these qualities and many more. Ditch the tedious task of hand feeding materials into the throat of your shredder. With a loading table and electric conveyor belt, your manual feeding is made easy. The spacious table allows for an abundance of materials, while the conveyor belt pulls these items into the shredder. Stay safe thanks to the convenient emergency stop-rail located in front of the loading table. Should a problem occur, this machine can be stopped in an instant. The operating element is multifunctional and features continuous or reverse operation. Paper jams are near inevitable. Seriously damaging situations can be avoided thanks to the automatic reverse function. When a paper jam is detected, the HSM 5088 kicks into reverse to remedied the problem. Whether you are destroying paper, three-ring binders, heavy cardboard, chip cards, or even CDS, the HSM 5088 tears apart these items to produce 0.24"x1.58"- 2.1" particles. Shredder maintenance is effortless thanks to the integrated, automatic oiler.

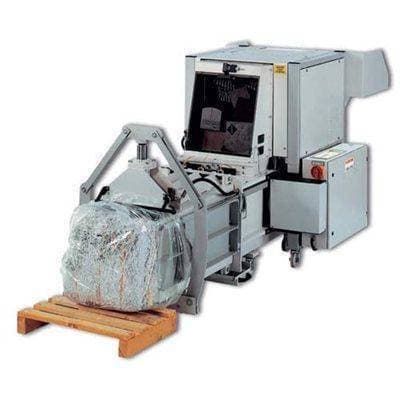

The baling unit features photoelectric cells for automatic operation, a filling hatch for shredded material, and an inspection hatch for any non-confidential documents or cardboard. Once enough shredded material is in the filling hatch, the pressing process begins. The high pressing power shapes the pieces into 400,00-950,00mm L x 500mm W x 500mm H bales. Polyester tape runs continuously for manual 3-fold strapping. Your bales can be easily banded and prepared for plastic bags. The HSM 5088 comes equipped with a polythene bag attachment and 5 plastic bags. Weighing in at over 3659 lbs. (1660 kg), the powerhouse HSM 5088 offers durable casters for easier mobility.

* Please note, capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.

Manufacturer Name HSM
Model # 5088
Throat Size/Feed Opening 19-11/16 inches
Shred Speed 8.27 inches/sec
Shred Size 1/4 inches
Security Level Level 3/P-4
Cut Type Cross Cut
Sheet Capacity Up to 450 sheets*
Shreds Credit Cards? Yes
Shreds Paper Clips? Yes
Shreds Staples? Yes
Peak HP 11500 W
Disclosures Capacity varies with grain, size, quality & paper weight and sufficient power supply.
** Please use actual HP as a specification for determining value. Use of Peak HP is for comparison purposes only where other than Actual HP is used.
Continuous Motor Yes
Weight 3,660 lbs
Height 71 inches
Width 49 inches
Depth 127 inches
Voltage Power: 400V, 3 Ph
Warranty Click here to view warranty
Shipping Weight 3,660 lbs.
