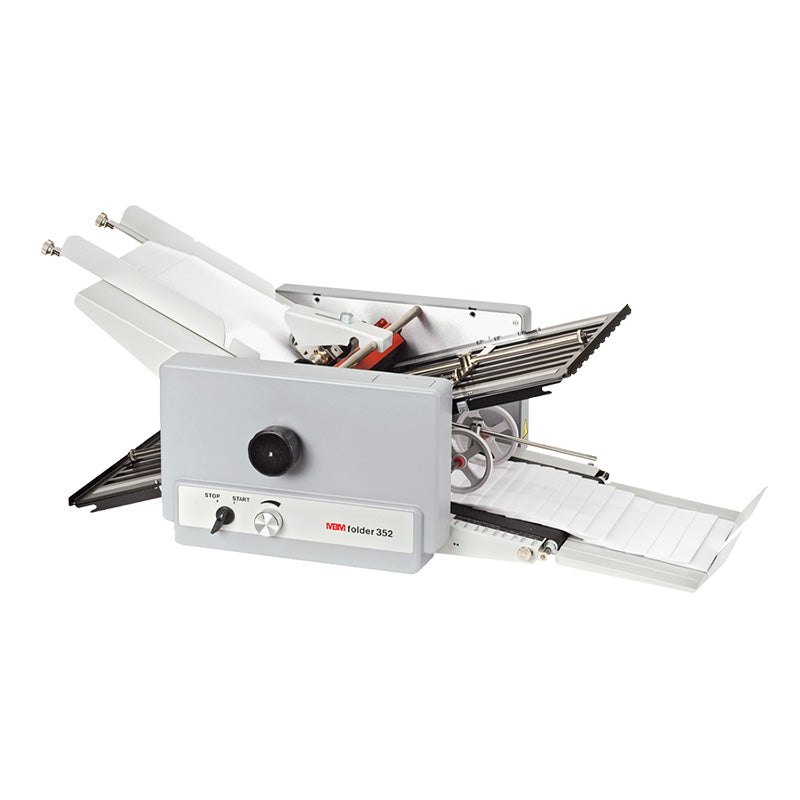

MBM 352F Friction Feed Manual Paper Folder
- SKU: MBM352-0624
- Max Paper Weight: 146.73 gsm
- Max Paper Size: 14" x 21.25"
- Adjustment: Manual
- Feed Type: Friction
- Fold Types: Letter, Half, Z-fold, Double Parallel, Gate, Engineer
- GTIN/UPC: 096224659124
- Mfr. Part No.: FO0624
- Sale price
- $7,499.00
- Sale price
- $7,499.00
- Unit price
- per
Call us at (800) 243-9226
Eligible for FREE FREIGHT SHIPPING within the contiguous United States.
This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please
add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.
Features of the MBM 352F Paper Folder
- Feed Tray Capacity: Up to 300 sheets
- Fold Types: Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Engineering Fold, Gate Fold
- Accepted Paper Sizes: 2" x 2.75" to 14'" x 21.25"
- Accepted Paper Weights: 13 to 110 lbs.
- Feed Type: Friction-fed
- Fold Adjustment: Manual fold adjustment
Features of the MBM 352F Paper Folder

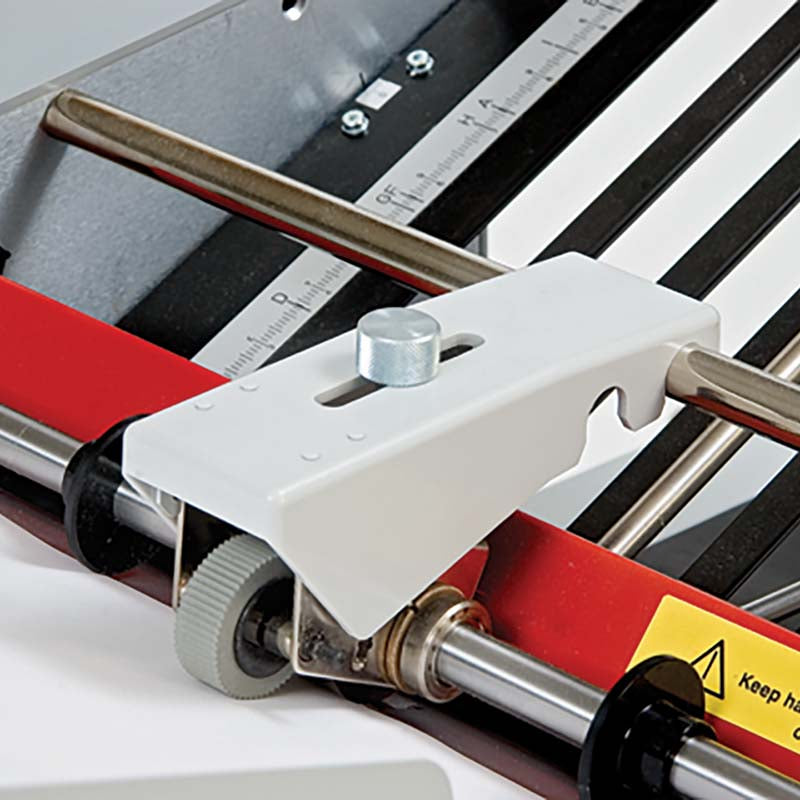

- Dual roller friction feed system folds a variety of stocks, including carbonless sheets.
- Adjusts in seconds for standard and custom folds.
- Variable speed control.
- Powered exit conveyor.
- Sheet separation from top of fanned stack.
- Polyurethane foam rollers eliminate the need for fold roller pressure settings.
- Heavy-duty, non-flexing side frames.
- Needle bearings for high speed production.
- Optional extended delivery system, cross fold for right-angle folding, and slitting, scoring, and perforating attachments.
- UL and C UL approved.
Fold Types for the MBM 352F Folder
There are seven different fold types available for the 352F:
(1) Letter fold (Tri-fold, C-fold),
(2) Half-fold (Single fold),
(3) Z-fold (Accordion, Zig Zag),
(4) Double-Parallel,
(5) Gate (Open Gate, Brochure), and
(6) Engineering (Short Z, Fold Out, Half Accordion).
(1)
(2)
(3)
(4)
(5)
(6)
Video of the MBM 352F Tabletop Paper Folder
Description of the MBM 352F Professional Series Paper Folder
The 352F paper folder by MBM, the fastest in its category, is a heavy-duty paper folder meant for print shops and other production environments. For extended durability, it is built with non-flexing frames on the side. The double roller, friction feeding allows for a variety of sheets, even carbonless paper. The rollers automatically change for different weights and thickness of paper. Maximum paper weight is 110 lbs, and 300 sheets is the maximum tray capacity. There is quick adjustment for either standard or custom folds, with flexible speed control. This paper folder has a motorized conveyor belt that makes a nice neat stack. There are needle bearings for jobs where precision and dependability are crucial.
The 352F provides convenient separation of the sheets from the top of the fanned stack of paper. There is no need for roller pressure settings, because the folder contains polyurethane foam rollers. The production is fast, folding sheets at the speed of 22,000 an hour. Though this MBM paper folder is heavy-duty, it is light and small enough to fit on a table. It is a good match for users looking for speed and the flexibility to conquer more complex folding jobs.
Strengths
- Rollers automatically distinguish between different paper sizes and weight, including carbonless stock; handles a variety of paper thickness too.
- Non-flexing side frames enhance strength; very durable, powerful folder.
- Optional slitting, scoring and perforating options.
What Customers Say:
- This small but heavy-duty paper folder is built for speed.
- When it comes to paper weight, the 352F is very flexible.
Please select your preferred download file from below.
For additional resources, please see:
- Our Paper Weight Conversion Chart for paper weight and paper stock information.
- Our Paper Folder Fold Type Guide to learn more about different fold types.
| Manufacturer Name | MBM |
|---|---|
| Model # | 352F |
| Feed Type | Friction-fed |
| Fold Adjustment Setting | Manual fold adjustment |
| Feed Tray Capacity | Up to 300 |
| Fold Speed | 22,000 sheets/hour |
| Fold Types | Half Fold, Letter Fold (Tri), Z Fold, Double Parallel Fold, Engineering Fold, Gate Fold |
| Pre-programmed Standard Folds | 6 |
| Variable Speed | Yes |
| Accepted Paper Sizes | 2" x 2 3/4" to 14" x 21 1/4" |
| Accepted Paper Weights | 13 to 110 lbs. |
| Weight | 105 lbs. |
| Height | 14 1/2" |
| Width | 41 3/4" |
| Depth | 22 1/4" |
| Voltage | 115 Volts; other voltages available |
| Warranty | Click here to view warranty |
| Shipping Weight | 105 lbs. |
| Shipping Length | 22 inches |
| Shipping Width | 28 inches |
| Shipping Height | 27 inches |
