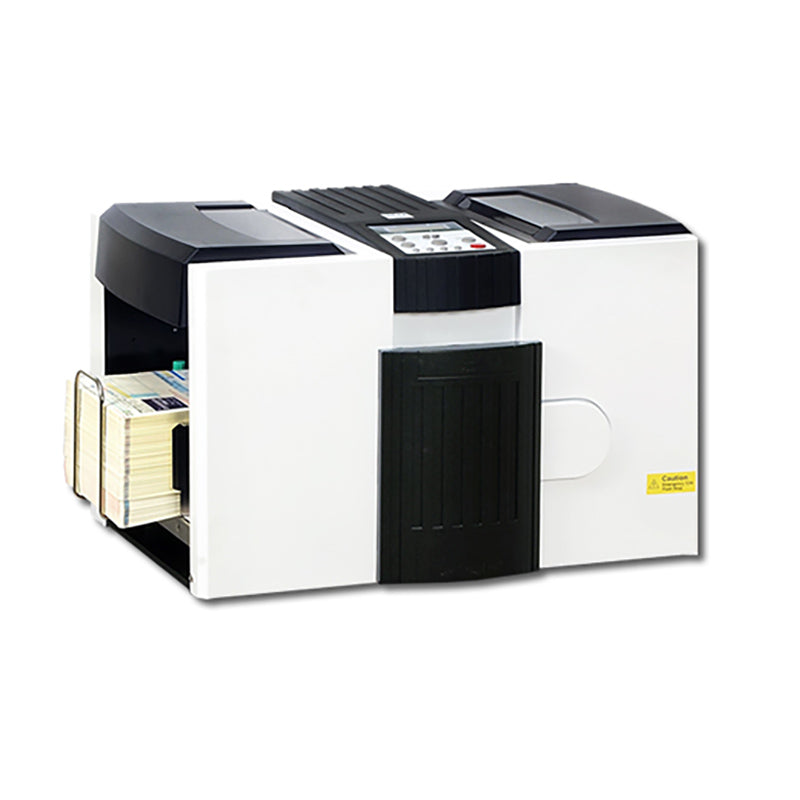

Paitec ES8500 Tabletop Pressure Sealer & Folder

  • SKU: PAIES8500
  • GTIN/UPC: 096224650367
Sale price
Sale price
$9,885.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

The ES8500 is the best value in the tabletop pressure seal market today. It processes up to 9,000 forms per hour with a monthly duty cycle of 130,000 pieces.

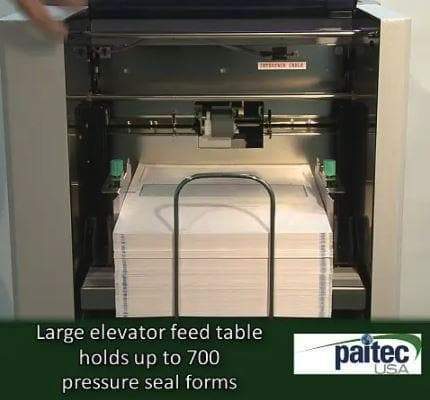

With its elevator feed table which holds up to 700 pressure seal forms, its Friction Reverse feed rollers which help eliminate double feeds, and its easy to access fold and seal rollers for routine cleanings, the ES8500 is the perfect solution for most offices with daily volumes of up to 6,000 pieces.

Basic Specs of the Paitec ES8500 Pressure Sealer

  • Form Size: A4 / Legal / Letter
  • Paper Weight: 22#-28#
  • Speed: Max 9,000 forms per hour
  • Fold Setting: Manual
  • Fold Type: Z, C, V, EZ
  • Double Feeding Detect: Available by DFD sensor
  • Stacker: Built-in 150 forms catch tray or Optional Conveyor
  • Duty: 130,000 / month

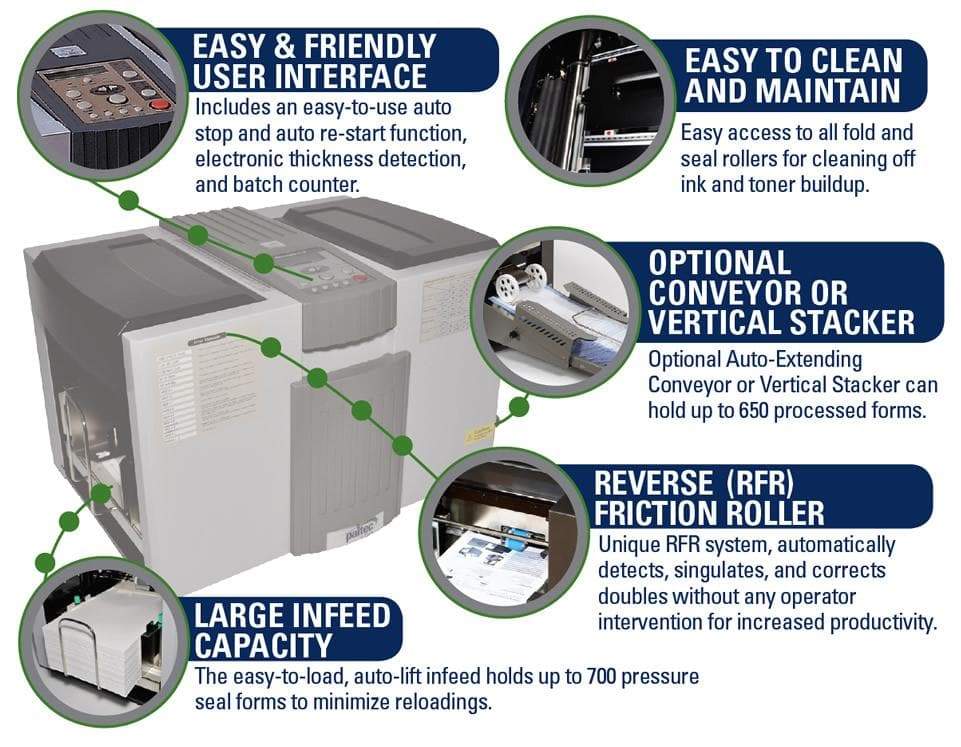

Features of the Paitec ES8500 Pressure Sealer

  • Speed of up to 9,000 documents/hour
  • Duty cycle: 130,000 pieces/month
  • Form size: depth - up to 14"; width - up to 9"
  • Can work as a stand-alone or in-line with laser printers
  • Easy and friendly user interface
  • Large capacity infeed tray (can hold up to 1,400 forms)
  • Reverse friction feed roller system
  • Double feed detector
  • Built-in 350 sheet catch tray
  • Optional auto extending exit conveyor or vertical stacker (can hold 650 forms)
  • Fold types: double parallel, C, V, Z, EZ and EC

Description of the Paitec ES8500 Tabletop Pressure Sealer & Folder

The Paitec ES8500 is a heavy duty tabletop pressure sealer that features a unique elevator feed table that holds up to 700 forms. The ES8500 features reverse friction feed rollers (a unique RFR system) that can detect and correct most double feeds without any help from the user. Any pressure form (checks, invoices, bills, grade reports, result forms, coupons, notices, and more) up to 14" long and 9" wide can be folded and sealed in no time at all and easily mailed. The auto-lift infeed holds an incredible 700 pressure seal forms (catch tray holds 150 so users do not have to reload forms as often during the 9,000 forms per hour process). And with a high duty cycle, users can seal up to 130,000 forms per month, roughly 6,000 per day without overworking the machine.

Users can remove the cover for easy access to fold and feed rollers to clean any residue, such as ink or dust. The LCD control panel features a batch counter, speed control, and electronic thickness detection. Easily adjust fold settings (Z, EZ, C, EC, V, & Double Parallel folds) and start sealing for a speedy, hands-free process. Also available for the ES8500 is an optional metal cabinet, inline kit (to connect to select printers), and auto extending conveyer or vertical stacker (holds 650 finished forms). The ES8500 is a great value for any business looking for a greener way to mail.

Manufacturer Name Paitec
Feed Type Friction-fed
Fold Adjustment Setting Manual fold adjustment
Feed Tray Capacity Up to 1,000 (with optional conveyor or stacker)
Speed 9,000 forms/hour
Programmable Presets 18
Counter Yes
Batcher Yes
Fold Types Double Parallel Fold, C Fold, V Fold, Z Fold, EZ Fold, EC Fold
Accepted Paper Sizes A4, Letter, Legallons
Accepted Paper Weights 20 to 28 lbs.
Duty Cycle 130,000
Model # ES8500
Weight 115 lbs.
Height 15 inches
Width 24 inches
Depth 17 inches
Voltage 120 Volts; other voltages available
Warranty Click here to view warranty
Shipping Weight 150 lbs.
Shipping Length 24
Shipping Width 35
Shipping Height 24

QUESTIONS & ANSWERS

Ask a Question
  • Does this have a manual seal option for items that were already folded by hand, because of a jam?

    No. Since the sealing is the last part of the process, a document that jams inside the machine could only be folded. You would just place that document back in the hopper to be run again. Folding an already-folded document isn't harmful or problematic.
