  • SKU: BESFD7700-BASE19
  • Mfr. Part No.: FD 7700-Base19
$78,495.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Formax FD 7700 Series Base 19 Folder-Inserter

  • System Speed: Up to 5,000 envelopes per hour (#10 envelopes)
  • Accumulation Speed: Up to 14,000 sheets per hour
  • Document Feeder Capacity: Up to 2,000 sheets (combinations of 500 and 1,000 sheet feeders)
  • Tower Feeder Sheet Size: Up to 16" L portrait feed (folding), 8.5" L landscape feed (no folding)
    Up to 8.5" W portrait feeding (folding), 12" W landscape feed (no folding)

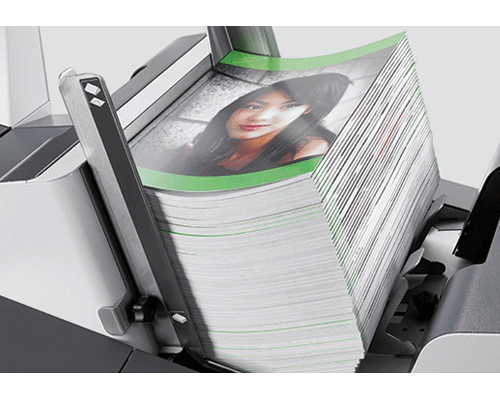

  • High-Capacity Insert Feeder: Up to 250 sheets (20 lb., 80 gsm), up to 1/4" booklets
  • Envelope Feeder: Top-loading, up to 800 #10 envelopes, or 500 10"x 13" flat envelopes
  • Envelope Size: 3.9" - 10" H x 8.9" - 13" W
  • Maximum Set/Insert Thickness: Up to 80 sheets, up to 3/8" thick
  • Maximum Sheet Thickness: Up to 200 gsm
  • Duty Cycle: Up to 300,000 pieces per month
  • Fold Types: C, Half, Z, Double Parallel and no fold

Features of the Formax FD 7700 Series Base 19 Folder-Inserter

  • Modular design allows the flexibility to add feeders- up to 11 feed stations.
  • Intuitive user interface that includes a widescreen color touchscreen control
  • Automatic job setup with document & envelope library.
  • Unlimited programmable jobs.
  • Feeds inserts without folding, folds C/Z/Half and pre-folded inserts, handles Daily Mail sets, optional full-page code reading. Up to 8 can be used in line.
  • High-speed/capacity accumulator, divert tray holds up to 300 sheets.
  • Predictive Intelligence shows time remaining until job completion.

*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists at (800) 243-9226 for pricing with your preferred configuration.

Additional Configurations

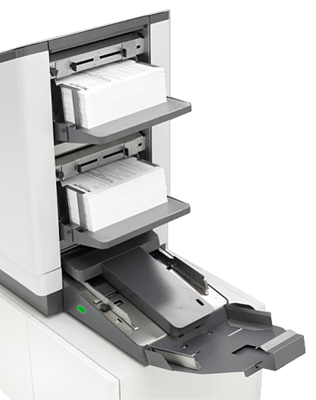

  • 1 Station High Capacity Tower Feeder - up to 1,000 sheets, No CIS Kit, w/Cabinet
  • 1 Station High Capacity Tower Feeder - up to 1,000 sheets, CIS Scanner, Face Down Bottom Position, w/Cabinet
  • 1 Station High Capacity Tower Feeder - up to 1,000 sheets, CIS Scanner, Face Up Bottom Position, w/Cabinet
  • 2 Station Tower Feeder - two 500-sheet Feeders, No CIS Kit, w/Cabinet
  • 2 Station Tower Feeder - two 500-sheet Feeders, CIS Scanner, Face Down Bottom Position, w/Cabinet
  • 2 Station Tower Feeder - two 500-sheet Feeders, CIS Scanner, Face Up Bottom Position, w/Cabinet
  • 2 Station Tower Feeder - two High Capacity 1,000-sheet Feeders, No CIS Kit, w/Cabinet
  • 2 Station Tower Feeder - two High Capacity 1,000-sheet Feeders, CIS Scanner, Face Down Bottom Position, w/Cabinet
  • 2 Station Tower Feeder - two High Capacity 1,000-sheet Feeders, CIS Scanner, Face Up Bottom Position, w/Cabinet
  • 2 Station Tower Feeder - two High Capacity 1,000-sheet Feeders, CIS Scanner, Face Up Top/Face Down Bottom, w/Cabinet
  • 2 Station Tower Feeder - two High Capacity 1,000-sheet Feeders, CIS Scanner, Face Down Top/Face Up Bottom, w/Cabinet
  • 3 Station Tower Feeder - two 500-sheet Feeders, one 1,000-sheet Feeder, No CIS Kit, w/Cabinet
  • 3 Station Tower Feeder - two 500-sheet Feeders, one 1,000-sheet Feeder, CIS Scanner, Face Down Bottom, w/Cabinet
  • 3 Station Tower Feeder - two 500-sheet Feeders, one 1,000-sheet Feeder, CIS Scanner, Face Up Bottom, w/Cabinet
  • 3 Station Tower Feeder - two 500-sheet Feeders, one 1,000-sheet Feeder, CIS Scanner, Face Up Top/Face Down Bottom, w/Cabinet
  • 3 Station Tower Feeder - two 500-sheet Feeders, one 1,000-sheet Feeder, CIS Scanner, Face Down Top/Face Up Bottom, w/Cabinet
  • 4 Station Tower Feeder - four 500-sheet Feeders, No CIS Kit, w/Cabinet
  • 4 Station Tower Feeder - four 500-sheet Feeders, CIS Scanner, Face Down Bottom, w/Cabinet
  • 4 Station Tower Feeder - four 500-sheet Feeders, CIS Scanner, Face Up Bottom, w/Cabinet
  • 4 Station Tower Feeder - four 500-sheet Feeders, CIS Scanner, Face Up Top/Face Down Bottom w/Cabinet
  • 4 Station Tower Feeder - four 500-sheet Feeders, CIS Scanner, Face Down Top/Face Up Bottom, w/Cabinet

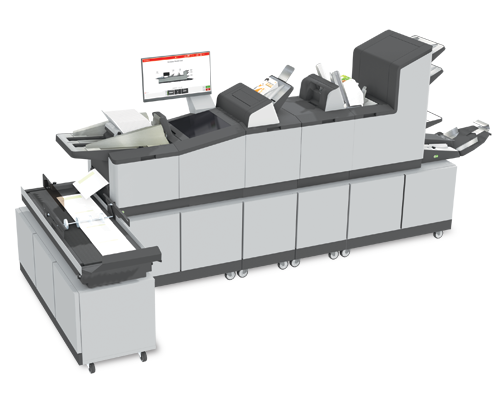

Description of the Formax FD 7700 Series Base 19 Folder-Inserter

The 7700 Series High-Volume Inserters meet the rigorous demands of nearly every mailing application from direct mail campaigns to mailings containing personal and private information.

The 7700 Series Base 19 Folder-Inserter is customizable from the inserter base up. Choose from one of five Tower Feeder-Folders, non-intelligent and intelligent High Capacity Insert Feeders, and in-line Feeder-Folders to meet the exact specifications for your mailings. The modular design enables up to 11 feeders to be combined based on the module configurations. In addition, the 7700 Series Base 19 can be equipped to read OMR, BCR, 2D, and QR, with codes located anywhere on the page, even reading barcodes on the reverse side of the document!

Its robust folding system folds up to 8 sheets at a time, with the power to process up to 5,000 envelopes per hour, and up to 300,000 finished pieces per month. When processing flats, the 7700 Series Base 19 can insert sets of up to 80 sheets and/or up to 10mm in thickness with the Thick Set upgrade license. The top-loading envelope hopper holds up to 800 #10 envelopes or 500 10” x 13” flats, in landscape orientation for higher processing speeds.

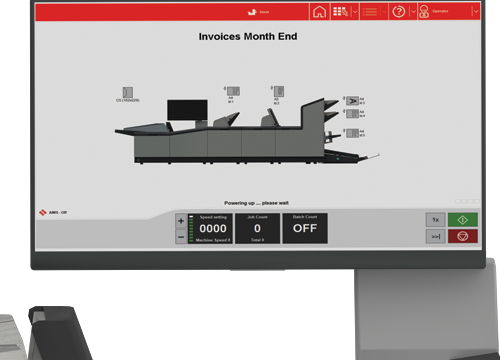

Designed for user friendly interaction, the 7700 Series Base 19 features a 22” color touchscreen interface with intuitive graphics, a dynamic time-until-job-completion display, and unlimited programmable jobs, to easily create and run inserting applications. Standard features include a high-capacity 4-foot outfeed conveyor, which can be used in-line or at a 90° angle, an accumulation/divert deck with an integrated reset button, and custom cabinets with casters for sturdy, movable storage.

With modular, flexible, high capacity and intelligent design, the 7700 Series Inserters are ready to take on just about any mailing challenge.
