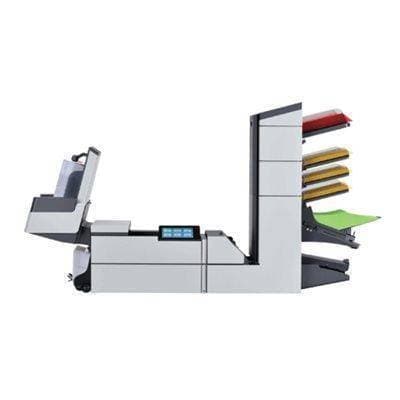

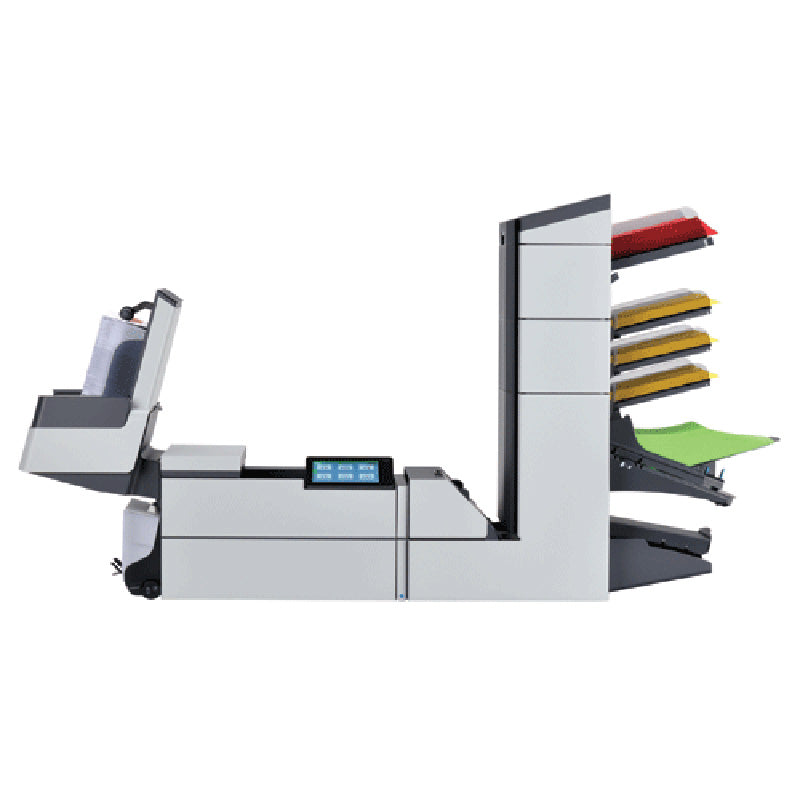

The Formax FD 6406-Standard 3F Folder Inserter is a brainy choice to fulfill all kinds of needs related to documents at the workstation. It is multifunctional, and the domain of functions include inserting, scanning and folding. This everlasting and durable feeder does folding in two ways, either half or tri-fold.
Basic Specs of the Formax FD 6406-Standard 3F Inserter
- Feeder Capacity: Up to 325 sheets, 20# paper (each feeder) / 725 (Production Feeder)
- Paper Size: 3.5” - 14” L x 5.1” - 9” W
- Envelope Size: 6.3” - 9.7” L x 3.5” - 6.3” W
- Dimensions: 65” L x 32” H x 16.5” D (four-station models)
- Voltage: 100 Volts AC 50/60Hz
- Safety Certifications: UL, CE approved
Features of the Formax FD 6406-Standard 3F Inserter
- Three station - 1 High Capacity Standard feeder and 2 Standard feeders.
- The speed is up to 4,000 pieces per hour.
- The duty cycle is up to 60,000 pieces/month.
- There is AutoSet one-touch setup.
- There is a 7" color touchscreen control.
- There are 50 programable jobs.
- Cascade mode for continuous operation.
- Top-loading envelope hopper holds up to 325 envelopes.
- The vertical output stacker holds up to 500 envelopes.
- Eco mode saves energy.
- Double document detection.
- Folds and / or inserts up to 10 pages (half fold) or up to 8 pages (tri-fold).
- Fold types: C, Half, Z, Double Parallel and no fold.
*For OMR/BCR (variable inserting) barcode read heads, please contact one of our specialists for pricing configuration.
*Posted pricing is highly subject to change based on final configuration of machine. Please contact one of our specialists for pricing w/ your preferred.
Description of the Formax FD 6406-Standard 3F Inserter
The versatile 6406 Series is available with 2 to 6 stations for flexibility, and includes a variety of input configurations: a high-capacity document feeder for up to 725 sheets, 1 or 2 high-capacity production feeders, standard and special feeders, and short feed trays.
User-friendly features include the 7” color touchscreen control panel with graphics-based display and automatic paper and envelope presence sensors, a vertical output stacker which holds up to 500 filled envelopes, and a top-loading envelope hopper with a capacity of up to 325 envelopes which can be refilled on-the-fly. AutoSet allows operators to load envelopes and documents, then adjusts all settings automatically with the ability to store up to 50 programmed jobs for instant recall.
Its powerful folding capacity folds up to 10 sheets (half fold) or up to 8 sheets (tri-fold) at one time, plus Cascade Mode allows users to link feeders for continuous operation: when one feeder empties, another takes over.
Double document detectors located at each feeder and the insertion area ensure no double documents are fed into the system. The 6406 Series utilizes electromechanical detectors which can operate with any print density, paper color, thickness or paper dust. Documents requiring inspection can be delivered automatically to the divert station. The 6406 Series also offers energy savings with its auto standby mode, which goes into effect after 1 hour of idle time.
An optional CIS Scanner reads OMR, 1D and 2D Barcodes, QR codes, and OCR printed anywhere on the page, which provides the ability to automatically insert multiple-page documents, eliminating the tedious task of manually collating and inserting. Additional options include high-capacity production feeders, a thin booklet feeder, short feed trays for small inserts or BREs, side exit trays, custom cabinets and 402 Series Joggers.
