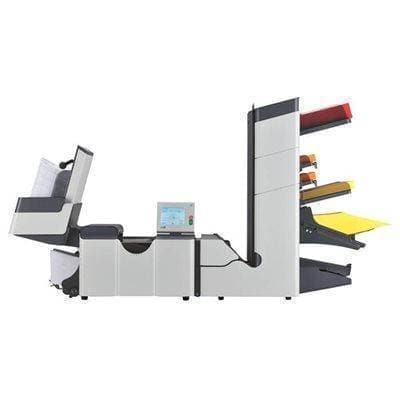

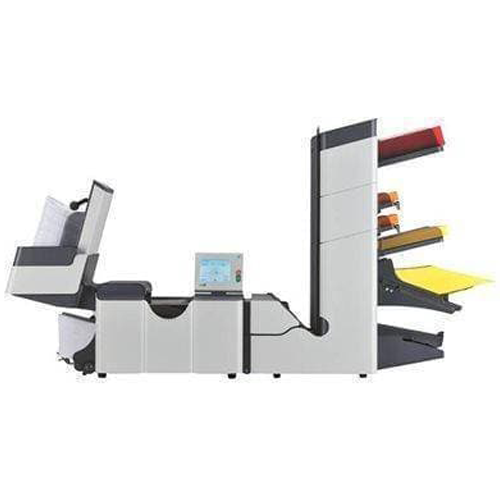

FP FPi-5600 Series Folder Inserter Inserters FP
FP FPi-5600 Series Folder Inserter Inserters FP

FP FPi-5600 Series Folder Inserter

  • SKU: FPFPI5600SERIES
  • GTIN/UPC: 096224656406
$25,641.00
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.

Extremely versatile, the powerful FPi-5600 can be ordered in configurations ranging from two to six feeders with either standard or special capabilities to perform any large inserting job.

Basic Specs of the FPi-5600

  • Up to 6 feeder stations
  • Processes up to 4,000 pieces an hour
  • Duty cycle of up to 60,000 items a month
  • Standard feeder holds 325 sheets
  • High capacity feeder hold 725 sheets
  • Vertical output stacker holds up to 325 filled envelopes
  • Fold types: Single, C, Z, Double Parallel and no fold
  • Folds up to 10 sheets of 20 lb bond
  • Handles envelopes up to 6.3"H x 9.7"W
  • Handles documents up to 14"H x 9"W
  • Dimensions: 16.5"W x 72"D x 36.5"H
  • Weight: 242 lbs.

Features of the FPi-5600

  • 5.7" touchscreen control panel
  • 25 programmable jobs
  • Optional OMR
  • Automatic Fill and Start program
  • Collates sheets before folding
  • Piece counter
  • Double document detector

Price shown is for the FPI-5660 with 6 standard trays. Additional options include:

  • FPi-5620 - 2 Standard Trays
  • FPi-5620S - 1 Standard Tray and 1 Special Tray
  • FPi-5620BA - 2 Trays with Bottom Address Feature
  • FPi-5630 - 3 Tray Inserter: Lower Trays = Standard, Upper Tray = HCDF
  • FPi-5630S - 3 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF
  • FPi-6630BA - 3 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF + Bottom Address
  • FPi-5640 - 4 Standard Trays
  • FPi-5640S - 3 Standard Tray and 1 Special Tray
  • FPi-5640BA - 4 Trays with Bottom Address Feature
  • FPi-5650 - 5 Tray Inserter: Lower Trays = Standard, Upper Tray = HCDF
  • FPi-5650S - 5 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF
  • FPi-5650BA - 5 Tray Inserter: Lower Trays = Special, Upper Tray = HCDF + Bottom Address
  • FPi-5660S - 5 Standard Tray and 1 Special Tray
  • FPi-5660BA - 6 Trays with Bottom Address Feature
Please specify which configuration you'd like when ordering.

Description of the FP FPi-5600 Folder Inserter

The FPi-5600 inserting system can feed documents, fold them and insert them in an envelope and then seal it. Delivers finished envelopes to a collecting bin that can be mounted to the left or the right of the machine, or to a downstream machine for further processing. A vertical stacker and a synchronized collecting conveyor are also available as optional equipment. User-friendly operation with a color touch-screen. Just three buttons control basic functions (ON/OFF, Start, Stop). To save energy, the machine automatically switches to stand-by mode when not in use. Documents can be fed from up to six stations, available in various configurations. Automatic and special stations, a high-capacity feeder, short feeder tray and maxi-feeder are also available. Engineered for everyday operation and versatility: mixed daily mail function, multi-sheet function, double-feed detection, feeder-swap (for alternating operation), document recognition with Optical Marks Reading (OMR) with new contact image sensor (CIS), semi-automatic envelope adjustment, memory for programming job settings.

Manufacturer Name FP
Fold Types Single Fold, C Fold, Z Fold, Double Parallel Fold, No Fold
Speed 4,000 pieces/hour
Max Number of Full Page Inserts 10 Sheets
Feed Tray Capacity Up to 725
Accepted Envelope Sizes 6.3" - 9.7" W x 3.5" - 6.3" H
Accepted Paper Sizes 5.1" - 9" W x 3.5" - 14" L
Duty Cycle 60,000
Envelope Feed Hopper Capacity Up to 325
Programmable Presets 25
Model # 5600
Manufacturer Part Number FPi5600
Weight 242 lbs.
Height 36.5"
Width 16.5"
Depth 72 inches
Shipping Weight 242.0 lbs.
