Akiles ProLam Plus 330 Laminator
Akiles ProLam Plus 330 Laminator
Akiles ProLam Plus 330 Laminator Laminators Akiles
Akiles ProLam Plus 330 Laminator Laminators Akiles

Akiles ProLam Plus 330 Laminator
https://www.youtube.com/watch?v=xW34R_PbzOw
Akiles ProLam Plus 330 Laminator Laminators Akiles
Akiles ProLam Plus 330 Laminator Laminators Akiles



Akiles ProLam Plus 330 Laminator

  • SKU: AKIPLPLUS330
  • GTIN/UPC: 00633726613027
  • Mfr. Part No.: APLP330
Sale price
Sale price
$318.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

The Akiles ProLam Plus series uses a heated roller system that allows for balanced heat distribution during the laminating process. This system guarantees crystal clear and bubble-free efficient lamination results.

Akiles believes that the ProLam Plus 330 is the next generation of pouch laminators. In addition to a 13" lamination capacity, this system also comes with adjustable PCB heat control, silicone rollers, hot/cold lamination capabilities, and Akiles' trademark metal construction. Compared to other laminators, the Akiles ProLam Plus 330 features a dual heat system. Through its heated rollers and heated plates, the ProLam Plus 330 provides more even heat distribution and reduces heat dissipation. This type of dissipation is a common problem pouch laminators face due to pouch composition with a standard pouch thickness.

Akiles' ProLamPlus 330 takes lamination jobs to new heights with its exceptional presentation. In order to achieve a smoother look, the pouch is heated by a roller system that applies heat uniformly to the pouch. This sort of lamination shines out when photos and ink-jet printouts are under process. Its wide 13" lamination capacity allows for easy pouch feeding, which makes the product a great choice. For optimal output, Akiles recommends purchasing a roller and plate laminator like this model with a dual heat system for a double effect on heat.

ProLam Plus 330 is Akiles' big brother of the ProLam 160. It has silicone-coated rollers that are designed to run either with or without a carrier for maximum flexibility. Heavy-duty laminating that is hot or cold can be done using the heat/cold switch, which is denoted by indicator lights. Take a look at the Akiles ProLam Plus 330 if you're looking for a flexible pouch laminator that can laminate letter-sized or smaller items without the need for frequently changing equipment or tuning the temperature.

Basic Specs of the Akiles ProLam Plus 330

  • Throat Capacity: 13 inches (330 mm)
  • Number of Rollers: 6 rollers (4 hot rollers, 2 cold rollers)
  • Max Laminating Speed: 23 inches per minute
  • Max Pouch Thickness: 10 mil
  • Max Laminating Thickness: 1 mm
  • Product Dimensions: 21" x 8.5" x 4.5"
  • Product Weight: 20 lbs. (26 kg)

Features of the Akiles ProLam Plus 330

  • Metal Cover (Dual Color): For a longer lasting lifespan & a more professional, heavy duty look.
  • Silicon Rollers: Provide the flexibility of laminating with or without a carrier.
  • Metal Gears: To guarantee strength and durability.
  • Forward / Reverse Switch: Allows easy corrective action for jams. i.e. when document is improperly fed or temperature was set too high.
  • Heat / Cold Switch: Offers cold lamination function.
  • Electronic Circuit (PCB) & Gradual Temperature Control: For a fast, consistent and easy fine-tuning of temperature. Ideal when operator requires frequent changing of pouch thickness, pouch composition or when laminating different materials.
  • 13-inch Throat: Extra-wide entrance for easy pouch feeding.

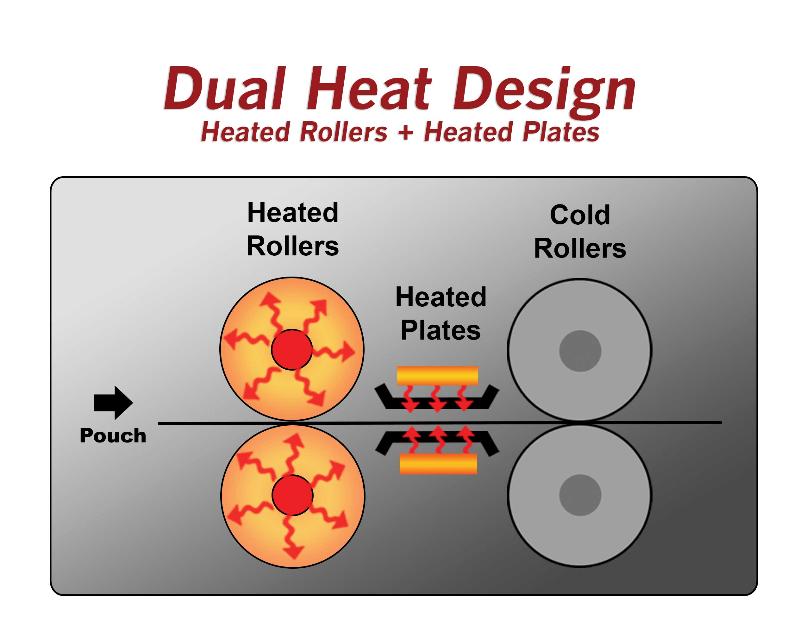

  • Dual Heat System (heated rollers & heat plate combination): For a more efficient lamination at lower temperatures. Allows for a perfect lamination of all standard pouch thicknesses (from 3 mils up to 10 mils).
  • Ready Light / Power Light / Power Switch

Other Key Features

  • Variable speed and temp
  • Photo ready technology
  • LCD control panel
  • Auto memory function
  • Industrial DC motor
  • 8-bit Micro-processor control system
  • Overheat protection system
  • All metal gears and construction
  • Reverse switch
  • Cold lamination function
  • 1-year warranty

Manufacturer Name Akiles
Model Name ProLam Plus 330
Throat Capacity 13 inches (330 mm)
Number of Rollers 6 rollers total (4 hot, 2 cold)
Laminating Speed 12-59 inches per minute
Max Pouch Thickness 10 mil
Max Laminating Thickness 1 mm
Product Dimensions 21" x 8.5" x 4.5"
Weight 20 lbs.
Shipping Weight 25 lbs.

QUESTIONS & ANSWERS

Ask a Question
  • What is the difference between a laminating sheet and a laminating pouch?

    Though the laminating industry often uses the terms interchangeably, laminating pouches and laminating sheets are distinct. Lamination pouches and lamination sheets both contain polyester and adhesive; however, lamination pouches often have a higher polyester to adhesive ratio.

  • Can you use any laminating pouches in a laminator?

    The thickness of laminating pouches ranges from 1.5 to 10 mil, and not all machines can handle all thicknesses. Your documents will be more protected if you use thicker supplies (which is important if they'll be handled often).

  • Can you insert laminated paper through the machine twice?

    When the laminator is completely heated, laminated paper can be sent through once again. Occasionally, this strategy can heat the bottom layer as well, causing it to stick to the paper. As a result, air bubbles are removed from the product. This lamination process can also be used to make an item thicker.
