Formax Cut-True DDC50 Automatic High-Speed Digital Die Cutter
- SKU: BESCut-TrueDDC50
- Type: Automatic
- Mfr. Part No.: Cut-True DDC50
This product requires Liftgate Service. If you don't have a loading dock or a forklift available to move the delivery off of the truck, please
add Liftgate Service to your cart.
If applicable, there is an additional charge for freight-related residential delivery.
Description of the Formax Cut-True DDC50 Die Cutter
The Formax Cut-True DDC50 Digital Die Cutting System creates on-demand custom packaging, advertising displays, kiss-cut labels and more, with precision and easy setup. Fully automatic, it utilizes QR Code recognition to process mixed jobs in a single stack, transforming cut sheets up to 350 microns thick into virtually any shape imaginable. Features include a dual-action cutting/creasing head, high-capacity vacuum belt feeder, Cut-True Pro Production Studio Software, touchscreen control panel, and freestanding PC workstation for enhanced versatility. The Cut-True DDC50 sets the standard for on-demand print finishing with unmatched speed and accuracy in the mid-production market.
All Standard Features of the Formax Cut-True DDC50 Die Cutter
- All-digital production = no costly dies

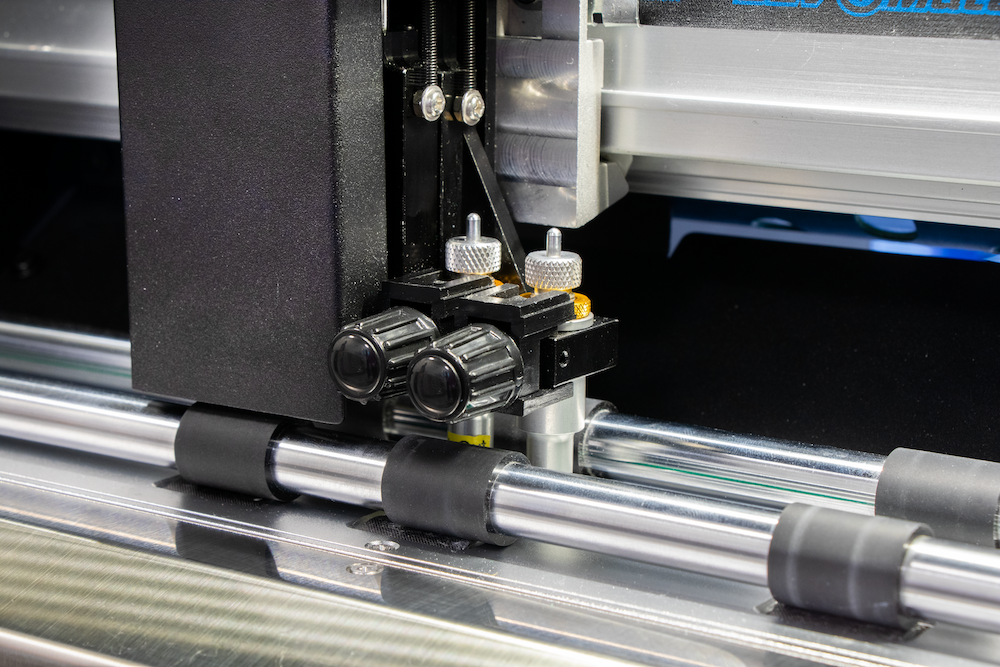

- Dual-action cutting/creasing head
- Cut-True Pro Production Studio Software
- Processes mixed jobs in a single stack

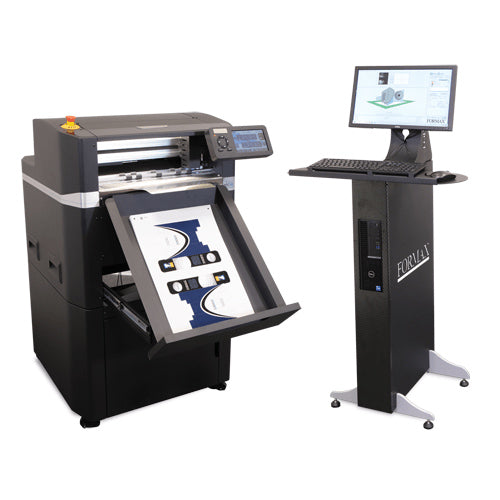

- Includes PC workstation with stand
- Software integrates easily with Adobe Illustrator
- High capacity next-generation vacuum belt feeder
- 7-inch touchscreen control panel
- Automatic air blade and automatic jog function
- QR codes automatically link to Job Library file settings
- Dual grip & drive feed system

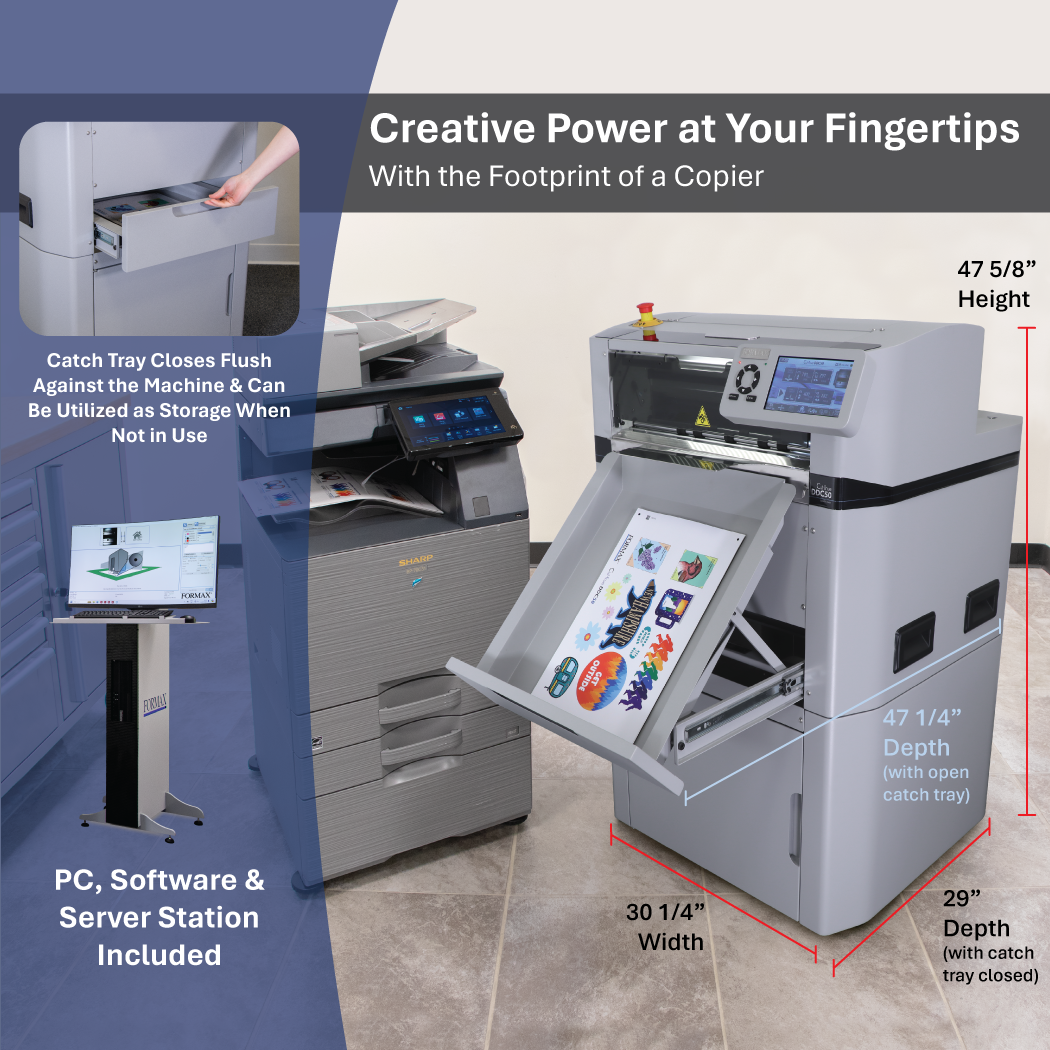

- Space-saving integrated media catch tray
- All-metal stand on casters for mobility
- Retention tags hold cut items in sheet
- Extendable paper infeed tray
- High-speed CCD camera registration for precision
- Revolutionary cutting strip for cut-through, creasing & kiss cutting
Please select your preferred download file from below.
| Manufacturer Name | Formax |
|---|---|
| Model # | Cut-True DDC50 |
| Capabilities | Die-Cut (with retention tags), Kiss-Cut, Crease, Perforate |
| Standard Media Size | 8.5" x 11" 11" x 17" 12" x 18" 13" x 19" |
| Media Size | Min: 7" x 13.4" Max: 13.4" x 28" |
| Max Cutting Area | 13 x 27.5 inches |
| Media Thickness | 0.0055" - 0.13" (140-350 microns) |
| Cut/Crease Force | 750gf Max 350 micron |
| Max Speed | Up to 47"/second (1,060mm/second) |
| Infeed Tracy Capacity | Up to 3.3" high; Up to 1,000 sheets 20# Bond Letter |
| Feeding System | Vacuum belt feeder |
| Power/Electrical | 100-240V 50/60Hz |
| Weight | 300 lbs. (cutter with stand) 71 lbs. (workstation with stand) |
| Cutter Dimensions | 33"W x 34"D x 49"H |
| Workstation Dimensions | 29"W x 21"D x 56"H |
