Paitec IM8500 In-line Desktop Pressure Sealer

Paitec IM8500 In-line Desktop Pressure Sealer

Paitec IM8500 In-Line Desktop Pressure Sealer

  • SKU: PAIIM8500
Sale price
Sale price
$11,895.00
Unit price
per
Request A Quote
Need Advice?
Call us at (800) 243-9226

Eligible for FREE FREIGHT SHIPPING within the contiguous United States.

This product requires Liftgate Service. If you don't have a loading dock or a forklift available, please add Liftgate Service to your cart. If applicable, there is an additional charge for freight-related residential delivery.

Basic Specs of the Paitec IM8500 Pressure Sealer

  • Form size: Depth up to 14", width up to 9"
  • Feeder capacity: Up to 700 sheets in standalone mode
  • Speed: Printer dependent; up to 7,000 standalone
  • Fold setting: Quick set manual
  • Paper weights: 16-30 lbs.
  • Infeed type: Reverse friction roller
  • Fold type: Z, EZ, C, EC, V and double parallel
  • Counter: Job counter and batch counter
  • Double detection: Automatically detects double feeds
  • Stacker capacity: 350 sheets / 650 sheets (optional slide conveyor)
  • Printer interface: Dual purpose (inline and standalone)
  • Duty cycle: 130,000 forms per month

Features of the Paitec IM8500 Pressure Sealer

  • Includes an easy-to-use auto stop and auto re-start function, electronic thickness detection, and batch counter.
  • Unique RFR system, automatically detects, singulates, and corrects without any operator intervention for increased productivity.
  • Can be converted to run as a standalone machine if your printer becomes inoperable so you can load forms from other printers into the large feed table.
  • Integrates easily to many leading laser printers with rear exits.

Fold Types of the Paitec IM8500 Pressure Sealer

There are six different fold types available for the IM8500: (1) Letter fold (Tri-fold, C-fold), (2) Half-fold (Single fold), (3) Z-fold (Accordion, Zig Zag), and (4) Double-Parallel

(1)Letter/Tri/C Fold (2)Half/Single Fold (3)Z/Accordion Fold (4)Double Parallel Fold


Description of the Paitec IM8500 Pressure Sealer

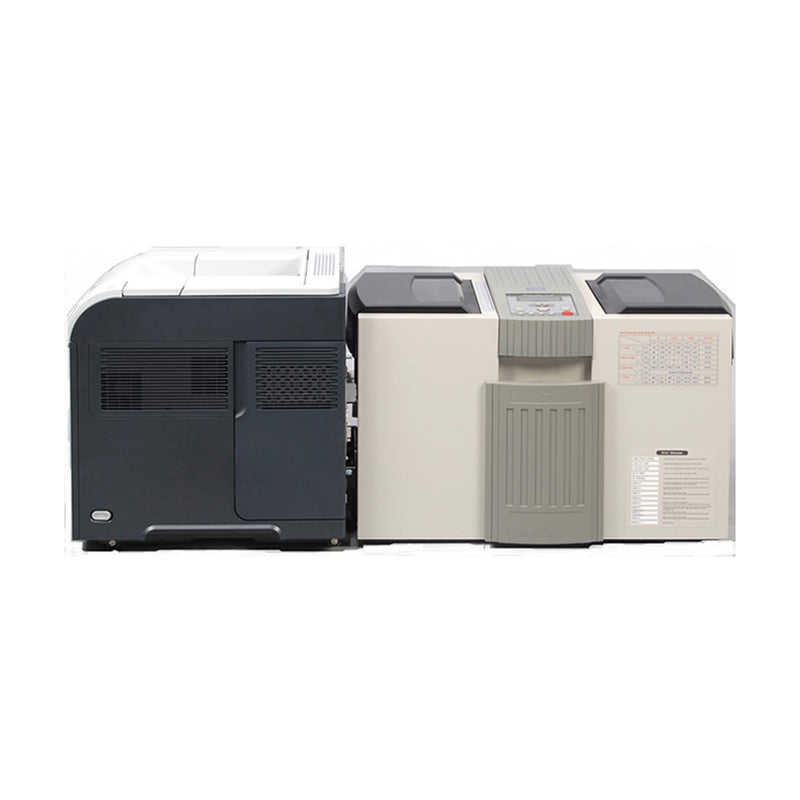

The IM8500 is an in-line pressure seal machine which connects directly to the back of many HP and other brand high speed laser printers for automatic processing. It allows you to print ‘n mail in one easy step. Now you can eliminate the tedious process of manually collecting forms from your printer and placing them in the folder sealer machine feed tray.

The IM8500 processes up to 7,000 forms per hour with a monthly duty volume of 125,000 pieces. This cost effective pressure sealer is also a dual mode machine which can operate as a traditional standalone pressure sealer when needed.

Manufacturer Name Paitec
Form size Up to 14" L x 9" W
Feeder capacity Up to 700 sheets in standalone mode
Speed Printer dependent; up to 7,000 standalone
Fold setting Quick set manual
Paper weights 16-30 lbs.
Infeed type Reverse friction roller
Fold types Z, EZ, C, EC, V and double parallel
Counter Job counter and batch counter
Double detection Automatically detects double feeds
Stacker capacity 350 sheets / 650 sheets (optional slide conveyor)
Printer interface Dual purpose (inline and standalone)
Duty cycle 130,000 forms per month
Weight 106 lbs.
Dimensions 17"W x 24"L x 26"H
